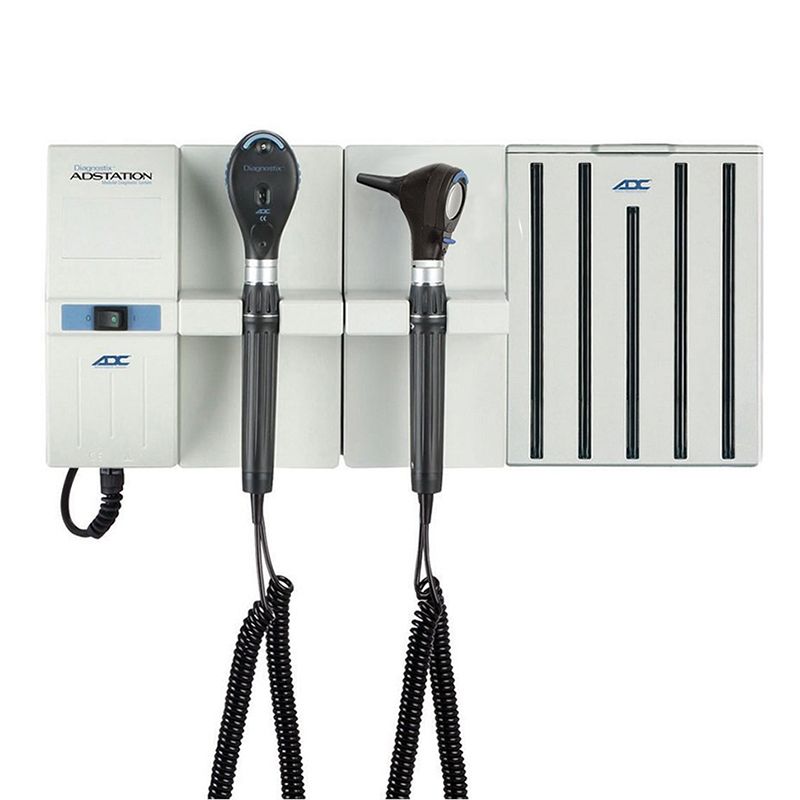

ADC Adstation 5610 3.5V Wall Otoscope/Ophthalmoscope Diagnostic Set with Specula Dispenser

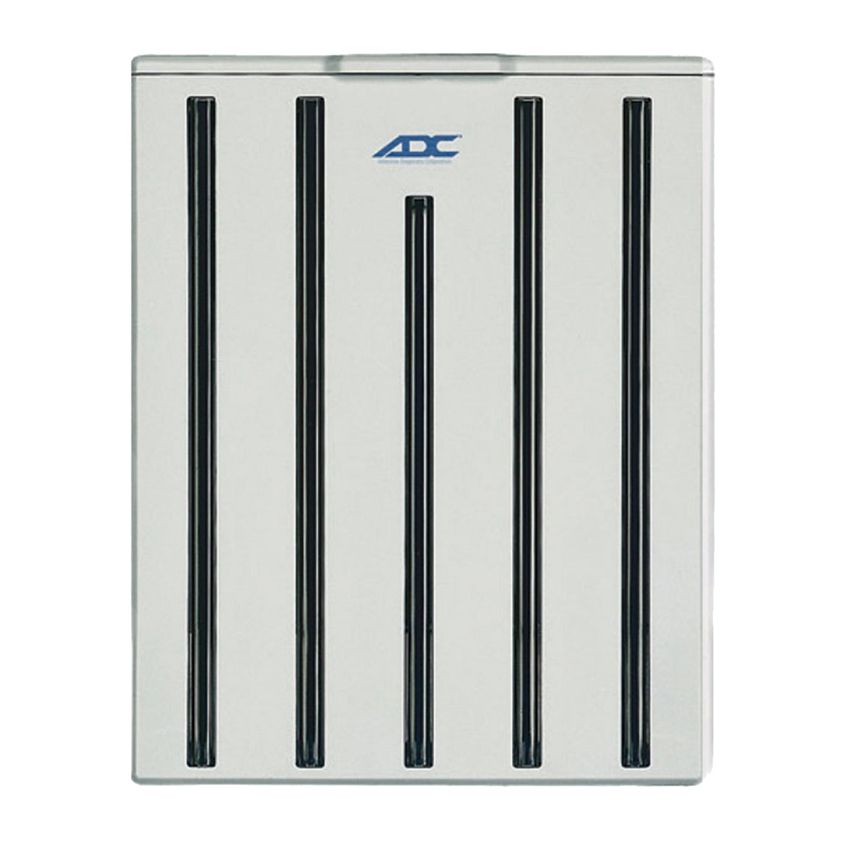

ADC Adstation 5610 3.5V Wall Otoscope/Ophthalmoscope Diagnostic Set - Specula Dispenser
ADC Adstation 5610 3.5V Wall Otoscope/Ophthalmoscope Diagnostic Set - Clock Aneroid with Cuff Basket
ADC Adstation 5610 3.5V Wall Otoscope/Ophthalmoscope Diagnostic Set - Clock Aneroid
ADC Adstation 5610 3.5V Wall Otoscope/Ophthalmoscope Diagnostic Set - Cuff Basket
ADC Adstation 5610 3.5V Wall Otoscope/Ophthalmoscope Diagnostic Set - Luminescent Dial
ADC Adstation 5610 3.5V Wall Otoscope/Ophthalmoscope Diagnostic Set - Inside of Manometer

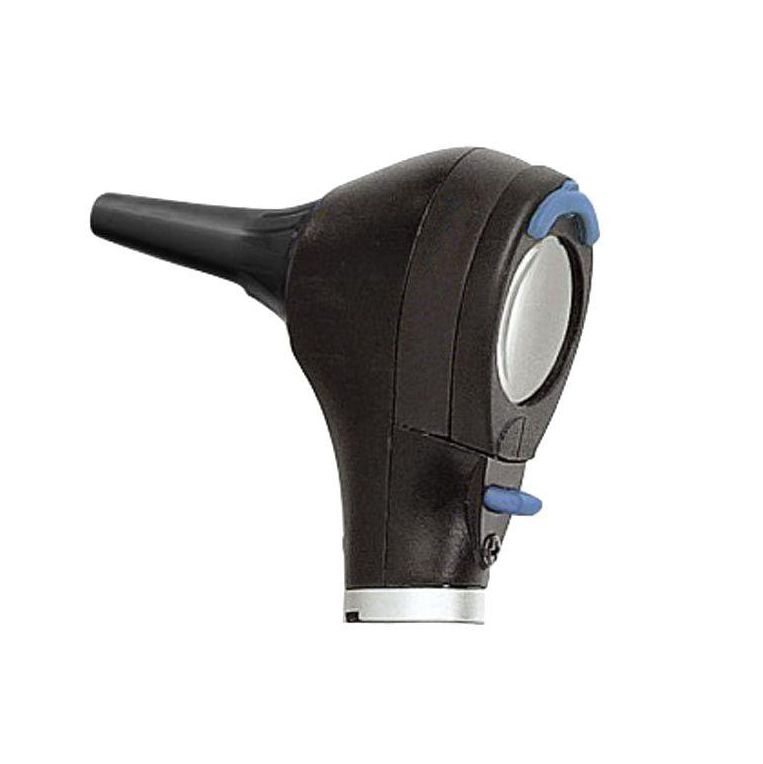

ADC Adstation 5610 3.5V Wall Otoscope/Ophthalmoscope Diagnostic Set - Otoscope Head
ADC Adstation 5610 3.5V Wall Otoscope/Ophthalmoscope Diagnostic Set - Ophthalmoscope Head Front

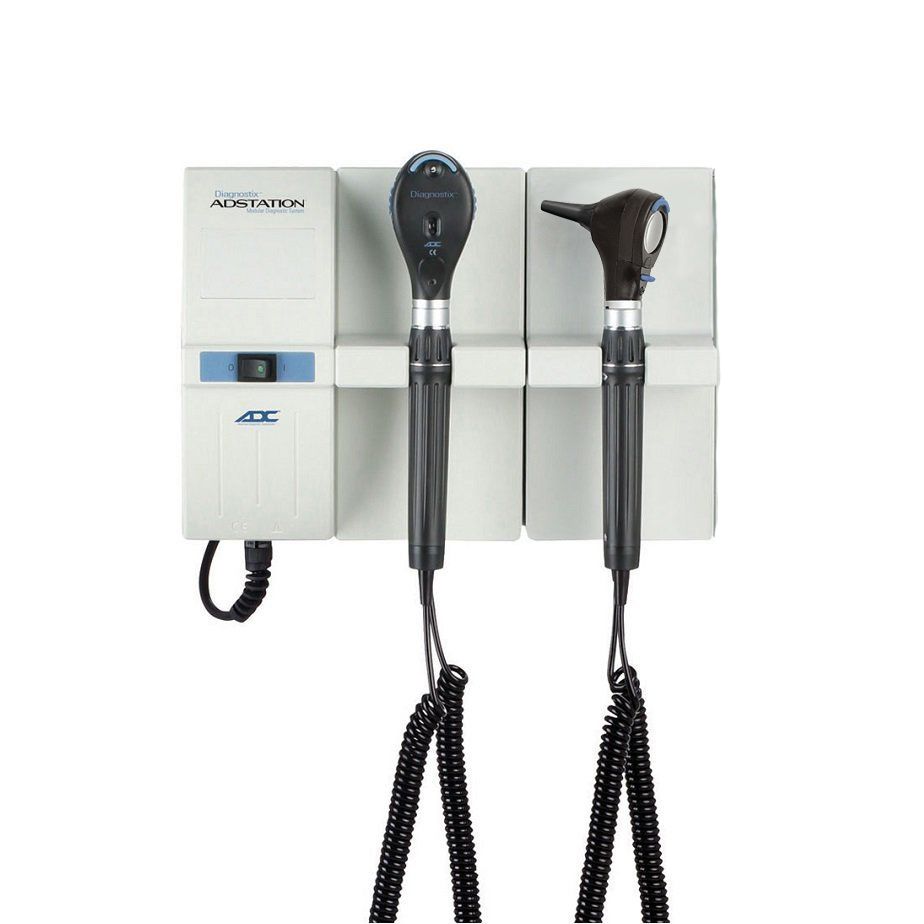

ADC Adstation 5610 3.5V Wall Otoscope/Ophthalmoscope Diagnostic Set
ADC Adstation 5610 3.5V Wall Otoscope/Ophthalmoscope Diagnostic Set with Specula Dispenser

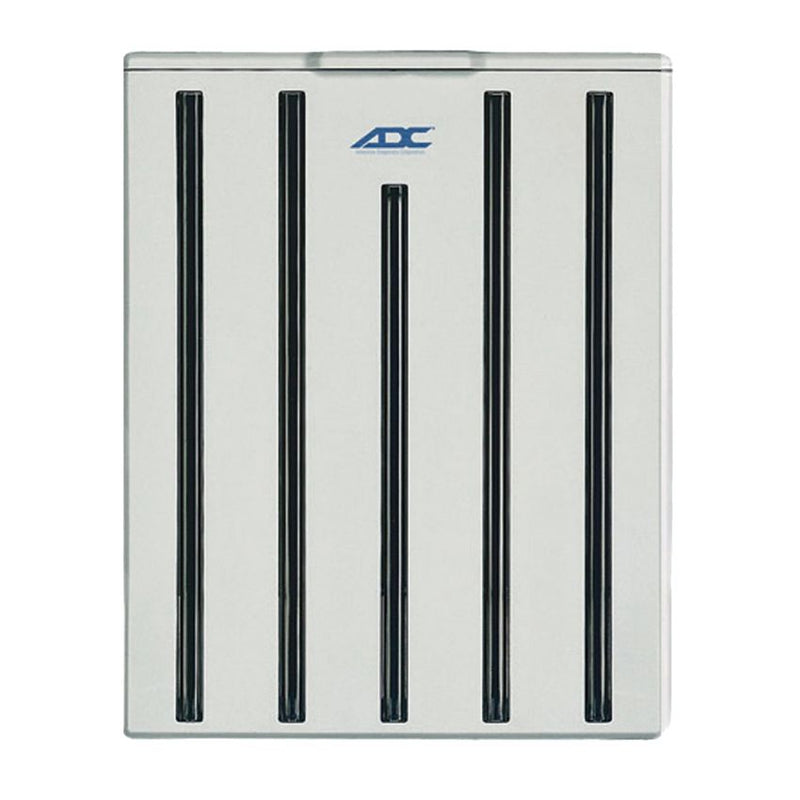

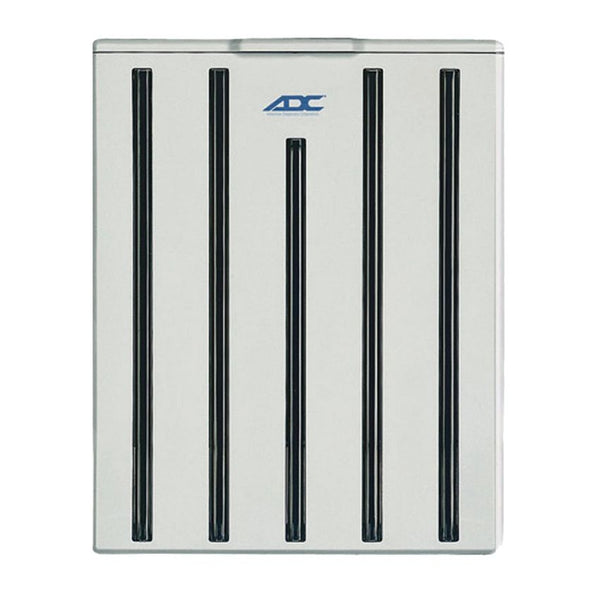

ADC Adstation 5610 3.5V Wall Otoscope/Ophthalmoscope Diagnostic Set - Specula Dispenser

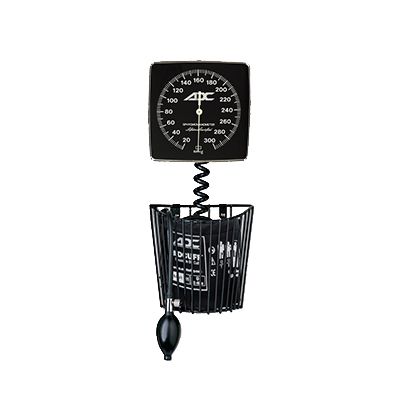

ADC Adstation 5610 3.5V Wall Otoscope/Ophthalmoscope Diagnostic Set - Clock Aneroid with Cuff Basket

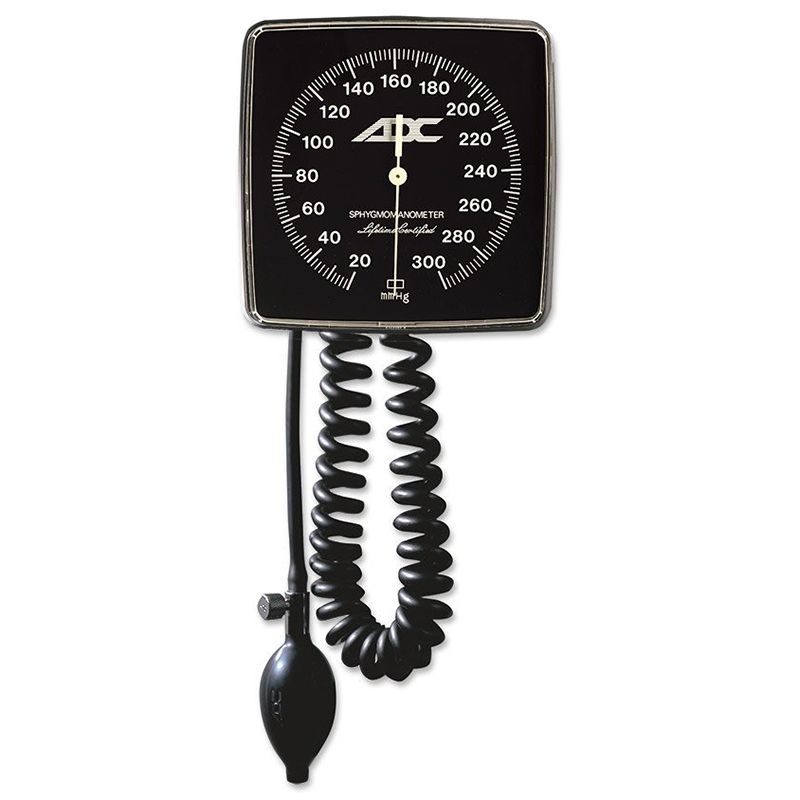

ADC Adstation 5610 3.5V Wall Otoscope/Ophthalmoscope Diagnostic Set - Clock Aneroid

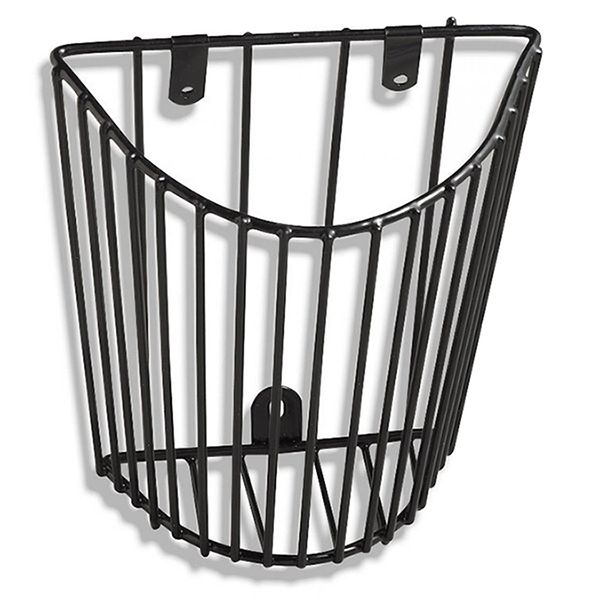

ADC Adstation 5610 3.5V Wall Otoscope/Ophthalmoscope Diagnostic Set - Cuff Basket

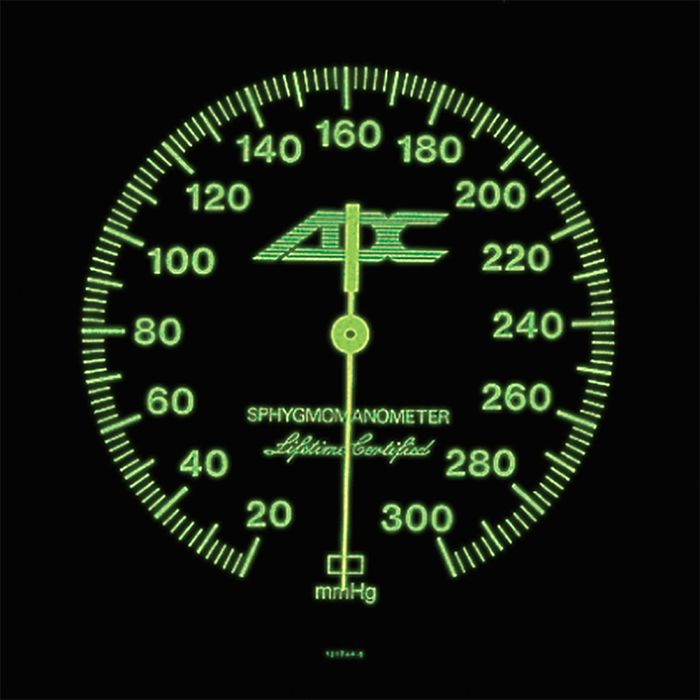

ADC Adstation 5610 3.5V Wall Otoscope/Ophthalmoscope Diagnostic Set - Luminescent Dial

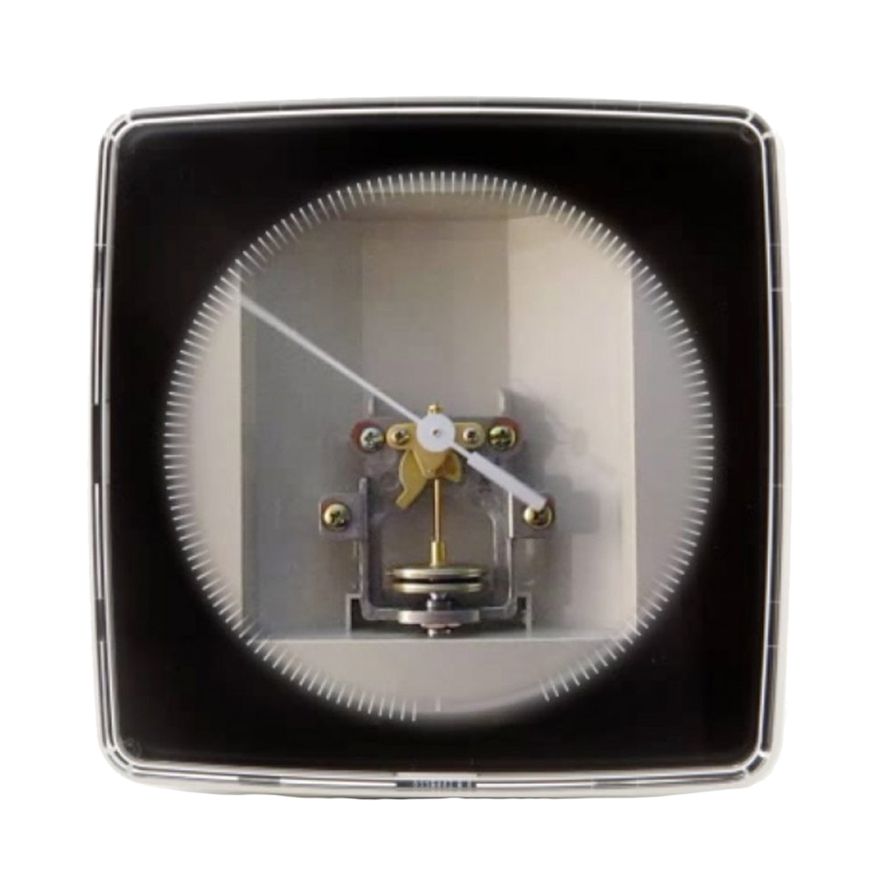

ADC Adstation 5610 3.5V Wall Otoscope/Ophthalmoscope Diagnostic Set - Inside of Manometer
ADC Adstation 5610 3.5V Wall Otoscope/Ophthalmoscope Diagnostic Set - Otoscope Head

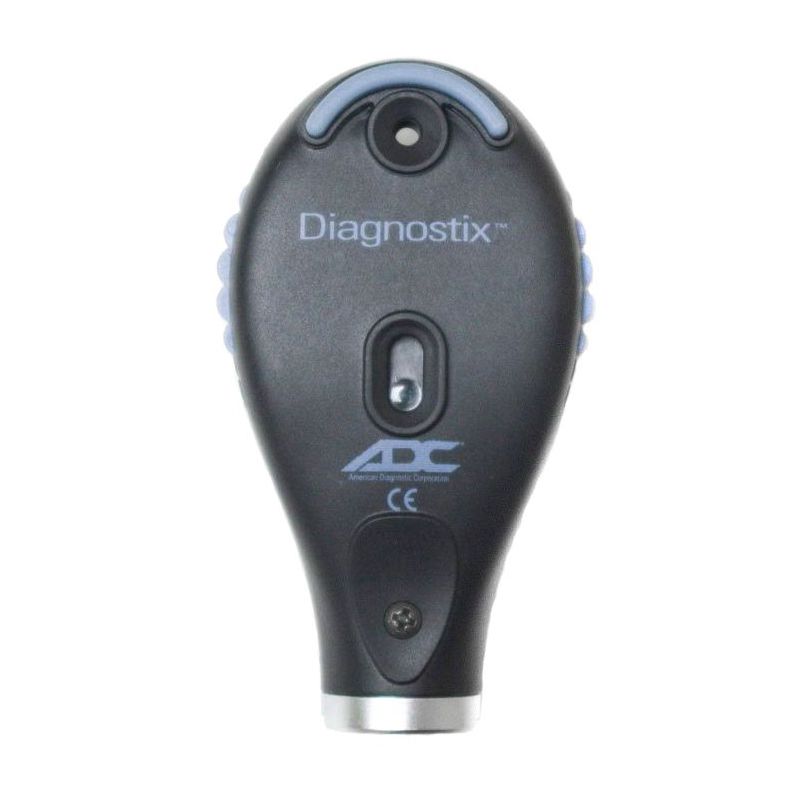

ADC Adstation 5610 3.5V Wall Otoscope/Ophthalmoscope Diagnostic Set - Ophthalmoscope Head Front
Key Features
  • SKU: ADC-5610X
  • Condition:
    Condition: Factory New
  • Warranty:
    Warranty: 5 Years
  • Weight: 4.28 lb

  • Learn more:

Contact The Manufacturer
  • MFR: American Diagnostic Corporation
    Ships from MFI Medical
  • MPN: 5610X
  • Phone: (800) 232-2670
$1,212.87 $751.14

+ Free Shipping

Est. Delivery:
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match

Description

The ADC Adstation 5610 3.5V Wall Otoscope/Ophthalmoscope Diagnostic Set includes an ADC Diagnostix 5420 3.5V Otoscope Head, an ADC Diagnostix 5440 3.5V Coax Ophthalmoscope Head, a power supply base unit that includes a power switch, two 3.5V handles, and an extension module. The wall transformer is available with a standard 120V or a 230V power supply with European plug in, and is easy to install with the included bracket or it may be mounted to ADC wallboard systems. The ADC Diagnostix 5420 3.5V Otoscope Head and the ADC Diagnostix 5440 3.5V Coax Ophthalmoscope Head is available with a halogen/xenon lamp or an advanced AdLED lamp.

The ADC 5630 Wall Specula Dispenser can also be added and is a hygienic and practical solution to storing specula and includes five tubes that can store specula.

An optional ADC Diagnostix 750W Wall Aneroid Sphygmomanometer can also be added and includes a wall bracket that swivels through 110 degrees rotation for easy viewing, and an Adcuff Inflation System which includes an Adult and Large Adult Nylon Cuff, an Adflow Bulb and Valve, coiled tubing, and a Cuff Storage Basket.

Warranty: 5 Years (Wall Transformer), 2 Years (Instrument Head and Xenon Lamps), Lifetime (LED Lamp), 3 Years (750W Wall Aneroid Sphygmomanometer. Manometer carries a lifetime calibration warranty).

The ADC Adstation 5610 3.5V Wall Otoscope/Ophthalmoscope Diagnostic Set is among one of the most critical instrument sets in a clinician's repertoire when performing a comprehensive physical exam.

Features

ADC Adstation 5610 3.5V Wall Otoscope/Ophthalmoscope Diagnostic Set Features

  • ADC Adstation 5610 3.5V Wall Otoscope/Ophthalmoscope Diagnostic Set Configurations:
    • Xenon Otoscope/Xenon Ophthalmoscope (#5610X) / European Plug (#5610X-EU).
    • LED Otoscope/LED Ophthalmoscope (#5610L) / European Plug (#5610L-EU).
    • LED Otoscope/Xenon Ophthalmoscope (#5610A) / European Plug (#5610A-EU).
    • Xenon Otoscope/LED Ophthalmoscope (#5610B) / European Plug (#5610B-EU).
    • Xenon Otoscope/Xenon Ophthalmoscope with Specula Dispenser (#5610X-3) / European Plug (#5610X-3EU).
    • LED Otoscope/LED Ophthalmoscope with Specula Dispenser (#5610L-3) / European Plug (#5610L-3EU).
    • LED Otoscope/Xenon Ophthalmoscope with Specula Dispenser (#5610A-3) / European Plug (#5610A-3EU).
    • Xenon Otoscope/LED Ophthalmoscope with Specula Dispenser (#5610B-3) / European Plug (#5610B-3EU).
    • Xenon Otoscope/Xenon Ophthalmoscope with Clock Aneroid (#5610X-7) / European Plug (#5610X-7EU).
    • LED Otoscope/LED Ophthalmoscope with Clock Aneroid (#5610L-7) / European Plug (#5610L-7EU).
    • LED Otoscope/Xenon Ophthalmoscope with Clock Aneroid (#5610A-7) / European Plug (#5610A-7EU).
    • Xenon Otoscope/LED Ophthalmoscope with Clock Aneroid (#5610B-7) / European Plug (#5610B-7EU).
    • Xenon Otoscope/Xenon Ophthalmoscope with Clock Aneroid and Specula Dispenser (#5610X-37) / European Plug (#5610X-37EU).
    • LED Otoscope/LED Ophthalmoscope with Clock Aneroid and Specula Dispenser (#5610L-37) / European Plug (#5610L-37EU).
    • LED Otoscope/Xenon Ophthalmoscope with Clock Aneroid and Specula Dispenser (#5610A-37) / European Plug (#5610A-37EU).
    • Xenon Otoscope/LED Ophthalmoscope with Clock Aneroid and Specula Dispenser (#5610B-37) / European Plug (#5610B-37EU).
  • ADC Diagnostix 5420 3.5V Otoscope Head Features:
    • Fiber-optic light transmission for an unobstructed view.
    • Optical glass reduces reflection and provides 3X magnification.
    • Bidirectional swivel lens allows instrumentation.
    • Insufflator port for pneumatic otoscopy.
    • Compatible with Welch Allyn specula.
    • Universal bayonet mount for compatibility with other brands of 3.5V power supply handles.
    • Anti-theft locking feature is standard.
  • ADC Diagnostix 5440 3.5V Coax Ophthalmoscope Head Features:
    • High performance aspherical condenser lens reduces corneal reflection.
    • Further reduction provided by utilizing distinct parallel observational and illuminating light beams (Gullstrand's principal).
    • Ergonomic design and integral thumb rest improves stability and allows one finger control of all functions.
    • Synthetic rubber brow rest facilitates use with practitioner eyeglasses.
    • Dust proof.
    • Magnified/illuminated aperture viewing window.
    • Universal bayonet mount for compatibility with other brands of 3.5v power supply handles.
    • Anti-theft locking feature is standard.
    • 29 viewing lenses from -35 to plus 40 (Plus 1-10, 12, 15, 20, 40 - Minus 1-10, 15, 20, 25, 30, 35).
    • 24 aperture/filter combinations for improved versatility.
    • 6 apertures include:
      • Slit - used to help determine levels of tumors and lesions.
      • Fixation - has graduated cross-hairs for measuring eccentric fixation or locating lesions.
      • Large - standard aperture for a dilated pupil and general examination of the eye.
      • Small - provides excellent view of fundus through an undilated pupil.
      • Micro spot- allows quick entry into small, undilated pupils.
      • Half moon - provides a combination of depth perception and field of view.
    • 3 filters (plus neutral) include:
      • Red free- excludes red rays from examination field for easy identification of veins, arteries and nerve fibers.
      • Cobalt - used with fluorescent dye to view small lesions, abrasions and foreign objects on the cornea.
      • Polarizing - virtually eliminates corneal reflection.
  • ADC Wall Transformer Power Supply Features:
    • Magnetic switch activates power when handle is removed from cradle, automatically powers off when handle is replaced.
    • Handle is CNC machined from solid brass and chrome plated in black with a ribbed surface for a sure grip.
    • Adtronic electronic rheostatic light intensity control provides infinite continuous control.
    • Adtronic auto-off feature after two minutes provides additional safety if instrument is mis-cradled.
    • Bayonet instrument mount is compatible with all major brands of 3.5V instrument heads.
    • Base unit contains the power switch and one handle and the extension holds the other handle.
    • Up to 2 additional extension modules (3 total) can be added.
    • UL approved.
  • ADC Diagnostix 750W Wall Aneroid Sphygmomanometer Features:
    • Large, easy-to-read 6" luminescent dial for high visibility in virtually any light condition.
    • 300 mm Hg no-pin stop movement withstands the heaviest use.
    • Eight foot length (when extended) of coiled tubing not made with natural rubber latex.

Specifications

ADC Adstation 5610 3.5V Wall Otoscope/Ophthalmoscope Diagnostic Set Specifications

  • Diagnostic Station Dimensions: 7.88" x 7.12" x 2.95" (20.02 cm x 18.08 cm x 7.5 cm).
  • Extension Module Dimensions: 7.88" x 3.94" x 2.95" (20.02 cm x 10.01 cm x 7.5 cm).
  • Adcuff Size - Adult: 9" - 15.7" (23 cm - 40 cm).
  • Adcuff Size - Large Adult: 13.3" - 19.6" (34 cm - 50 cm).

Frequently asked questions

Does the ophthalmoscope include specialty filters and apertures?

Yes, the ADC Diagnostix 5440 Coax Ophthalmoscope Head is equipped with a wide range of specialized filters and apertures to ensure precise and comprehensive fundus examination.

Key features include:

  • 6 Aperture Options: This allows for diverse viewing requirements with options including Slit, Fixation, Large, Small, Micro spot, and Half moon.
  • 4 Filter Options: The unit includes three specialty filters plus a neutral setting, enabling enhanced visualization:
    • Red Free: Essential for viewing the retina and blood vessels.
    • Polarizing: Designed to minimize corneal reflection, significantly improving clarity.
    • Cobalt: Used specifically for fluorescein examinations.
Is the ADC Adstation Otoscope compatible with Welch Allyn specula?

Yes, the included ADC Diagnostix 5420 3.5V Otoscope Head is fully compatible with Welch Allyn specula. This ensures ease of integration and flexibility for clinics that already utilize these standardized specula.

Does the Adstation use high-quality illumination?

Yes, the ADC Adstation 5610 provides high-quality 3.5V illumination with two excellent light source options for the instrument heads:

  • Halogen/Xenon Lamps: These deliver intense white light necessary for clear diagnostic viewing. They are covered by a 2-year warranty.
  • Advanced AdLED Lamps: These offer superior efficiency, longevity, and exceptional clarity. The AdLED component itself is backed by a Lifetime Warranty.

Furthermore, the Otoscope head uses fiber-optic light transmission for an unobstructed view, and the Ophthalmoscope incorporates a high-performance aspherical condenser lens to minimize reflection and enhance clarity.

Is the Adstation diagnostic system modular?

Yes, the ADC Adstation 5610 is designed as a highly modular system built for versatility and scalability in clinical settings. Its modularity allows for significant customization:

  • Scalable Capacity: The base unit, which includes two handles, can accommodate up to three 3.5V handles by utilizing optional extension modules.
  • Customizable Illumination: You can choose between high-performance Xenon or advanced AdLED illumination sources for both the Otoscope and Ophthalmoscope heads.
  • Integrated Accessories: The wall-mounted design allows for seamless integration of optional components, such as the ADC 5630 Wall Specula Dispenser and the ADC Diagnostix 750W Wall Aneroid Sphygmomanometer, creating a comprehensive diagnostic hub.
Does the station support international power standards?

Yes, the ADC Adstation 5610 is designed for global compatibility and supports dual-voltage operation.

While the instruments operate on a 3.5V system, the wall transformer power supply is compatible with the following primary configurations:

  • Standard 120V power supplies.
  • 230V power supplies, with a specific European plug option available for international use.
How compact are the wall station modules?

The ADC Adstation 5610 is designed for space efficiency, with all core modules featuring a slim profile of 2.95 inches (7.5 cm) deep. The specific dimensions for the components are:

  • Diagnostic Station (Power Supply Base Unit): 7.88” W x 7.12” H x 2.95” D
  • Extension Module: 7.88” W x 3.94” H x 2.95” D
Is the ADC Adstation 5610 easy to install?

Yes, the ADC Adstation 5610 is engineered for quick and easy wall installation in clinical settings.

  • Simple Mounting: The set includes a necessary mounting bracket to facilitate direct and secure installation onto the wall.
  • Modular Design: The system is designed to be modular, allowing for easy customization and scalability. You can add up to two extension modules to the base unit, enabling the station to power a total of three handles.
What is the otoscope head magnification?

The ADC Diagnostix 5420 Otoscope Head utilizes optical glass to provide a clear, detailed view with 3X magnification. This design also includes fiber-optic light transmission for consistent, bright illumination.

Does the ophthalmoscope offer a wide range of viewing lenses?

Yes, the ophthalmoscope head is equipped with 29 viewing lenses, providing a broad range from -35 to +40. This extensive selection allows for detailed and versatile eye examinations.

Is the diagnostic set modular and customizable?

Yes, the Adstation’s modular design allows for extensive customization. You can choose different instrument head configurations and add optional accessories like the ADC 5630 Wall Specula Dispenser and the ADC Diagnostix 750W Wall Aneroid Sphygmomanometer to suit your specific clinical requirements.
