ADC 802 Gauge for Diagnostix 720 Pocket Aneroid Sphygmomanometer

Key Features

SKU: ADC-802
Condition: Factory New
Warranty: Lifetime
Weight: 2.54 lb
Learn more:

Contact The Manufacturer

MFR: American Diagnostic Corporation Ships from MFI Medical

Items shipped from the manufacturer

This item will be shipped directly from the manufacturer to your doorstep, ensuring that you receive the newest product available. The estimated delivery range provided is based on the manufacturer's inventory levels and is subject to change depending on the quantity ordered. We ship items as soon as they become available, so if you order multiple quantities, you may receive them in separate shipments.

Special order item

A special order item will need to ship to our warehouse from the manufacturer before then shipping to you. The estimated delivery range that you see is based on the information that we receive from the manufacturer, which is also contingent upon your ordered quantity and the current inventory levels of the manufacturer. We will ship the items to you as soon as they become available, which may result in multiple shipments if you order more than one quantity.
MPN: 802
Phone: (800) 232-2670

$30.38 $28.93

Special Order Item

Est. Delivery:

Quantity

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Description

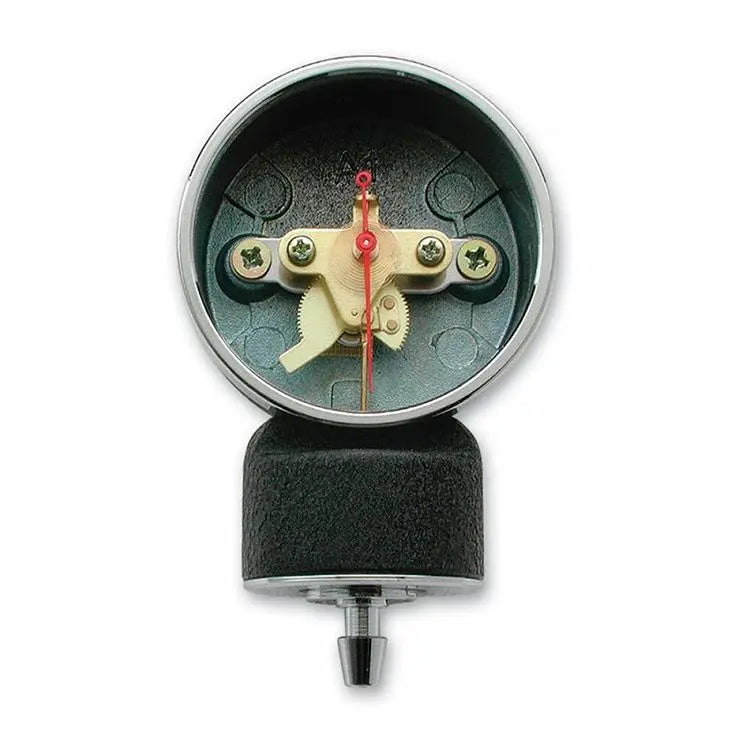

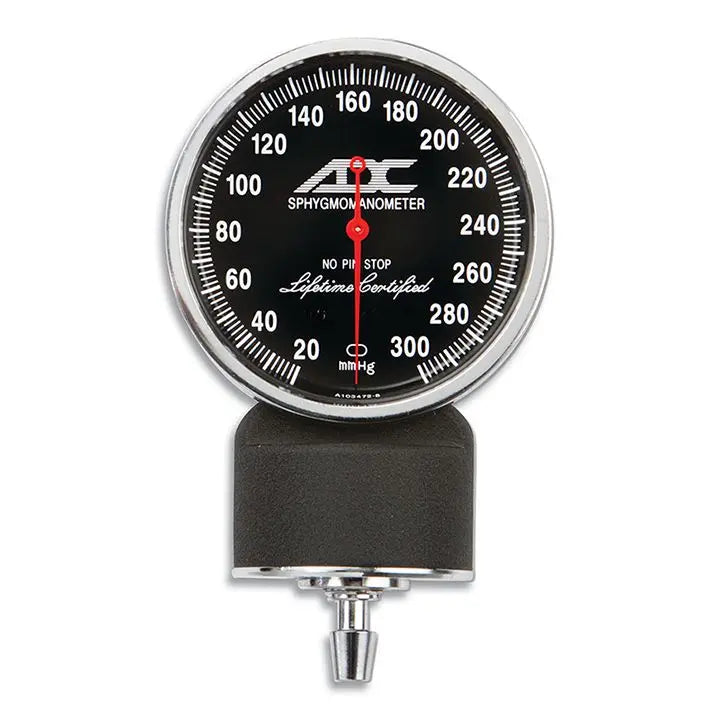

The ADC 802 Gauge for Diagnostix 720 Pocket Aneroid Sphygmomanometer (#802) is a precision crafted 300 mm Hg Japanese engineered manometer with a classic black baked enamel finish that exceeds industry performance standards.

Warranty: Lifetime calibration warranty.

Features

ADC 802 Gauge for Diagnostix 720 Pocket Aneroid Sphygmomanometer Features

This ADC 802 Gauge is designed for use on the following Sphygmomanometers and Sphygmomanometer Kits:
- ADC Diagnostix 720 Pocket Aneroid Sphygmomanometer.
- ADC Pro's Combo V 728-609 Pocket Aneroid/Adscope-Lite Scope Kit.

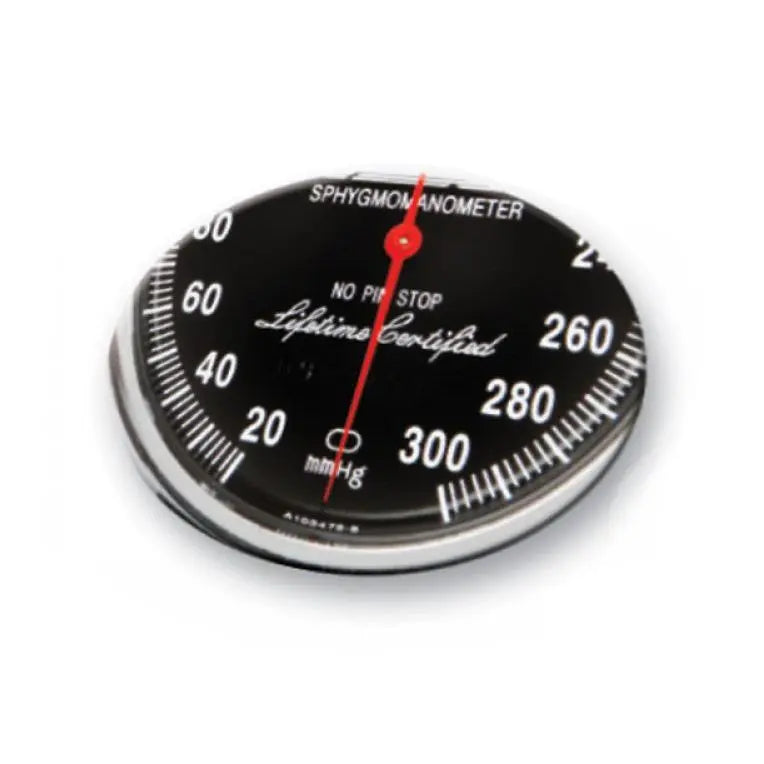

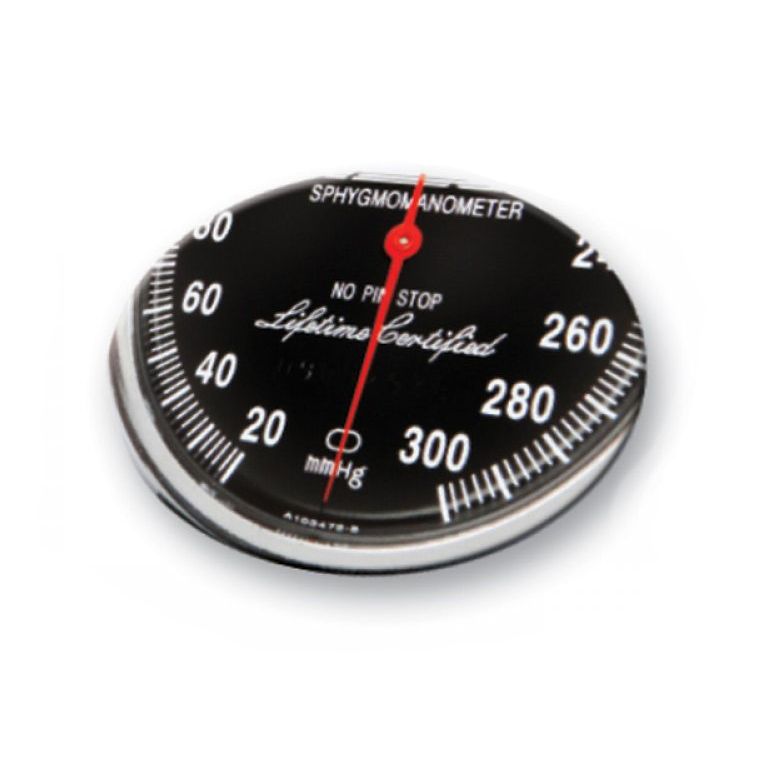

Extended scaleplate graduation marks reduce parallax for easier viewing from virtually any angle.
Meets or exceeds ANSI/AAMI/ISO 81060-1.
All gauges individually boxed.

Specifications

ADC 802 Gauge for Diagnostix 720 Pocket Aneroid Sphygmomanometer Specifications

Sphyg Type: Pocket.
Sphyg Accuracy: +/-3 mm Hg at 50 degrees F (10 degrees C) - 104 degrees F (40 degrees C).
Sphyg Accuracy at Extended Temperature Range: +/-3 mm Hg or 2%. Whichever is greater at less than 50 degrees F (10 degrees C) and greater than 104 degrees F (40 degrees C).
Storage Temp: -4 degrees F (-20 degrees C) - 131 degrees F (55 degrees C).
Valve Type: Adflow.
Number of Tubes Used: 2.

Media and Literature

ADC 802 Gauge for Diagnostix 720 Pocket Aneroid Sphygmomanometer Media and Literature

ADC 2017 Product Catalog

ADC Aneroid Sphygmomanometer Accessories Instructions for Use

ADC Diagnostix Aneroid Sphygmomanometers Instructions for Use

Frequently asked questions

What is the ADC 802 Gauge used for?

The ADC 802 Gauge is specifically designed as a replacement or spare gauge for the ADC Diagnostix 720 Pocket Aneroid Sphygmomanometer and the ADC Pro’s Combo V 728-609 Pocket Aneroid/Adscope-Lite Scope Kit.

Does the ADC 802 Gauge use a precision manometer?

The ADC 802 Gauge features a precision-crafted, Japanese-engineered manometer with a classic black baked enamel finish, ensuring accurate readings.

What is the accuracy and temperature range of the ADC 802 Gauge?

The ADC 802 Gauge offers impressive accuracy:

Standard Temperature Range (50°F to 104°F / 10°C to 40°C): It maintains an accuracy of +/-3 mm Hg.
Extended Temperature Range (below 50°F / 10°C or above 104°F / 40°C): Accuracy is maintained at +/-3 mm Hg or 2%, whichever is greater.

This precision is a result of its Japanese engineering and adherence to strict ANSI/AAMI/ISO 81060-1 standards, ensuring reliable performance across various conditions.

Does the ADC 802 Gauge have a warranty?

Yes, the ADC 802 Gauge comes with a lifetime calibration warranty, providing long-term peace of mind and cost savings.

What is the benefit of the extended scaleplate on the ADC 802 Gauge?

The extended scaleplate on the ADC 802 Gauge reduces parallax, making it easier to view readings from a wider range of angles.

What standards does the ADC 802 Gauge meet?

The ADC 802 Gauge meets or exceeds ANSI/AAMI/ISO 81060-1 standards.

What is the finish of the ADC 802 Gauge?

The ADC 802 Gauge has a black baked enamel finish.

Does the ADC 802 Gauge use two tubes?

The ADC 802 Gauge is designed to be used with two tubes and features an Adflow valve type, ensuring reliable performance for accurate blood pressure measurements.

What is the storage temperature range for the ADC 802 Gauge?

The storage temperature range for the ADC 802 Gauge is -4 degrees F (-20 degrees C) to 131 degrees F (55 degrees C).

Is the ADC 802 Gauge new?

The ADC 802 Gauge is a factory new product, ensuring you receive a brand new item directly from the manufacturer.
