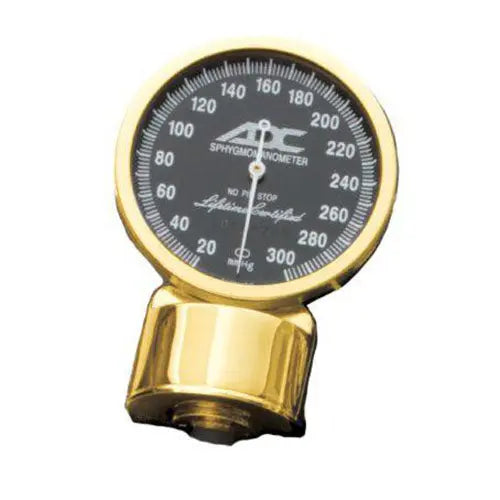

ADC 800GP Gold Plated Aneroid Gauge for Diagnostix 700/778 Pocket Sphygmomanometers

ADC 800GP Gold Plated Aneroid Gauge for Diagnostix 700/778 Pocket Sphygmomanometers

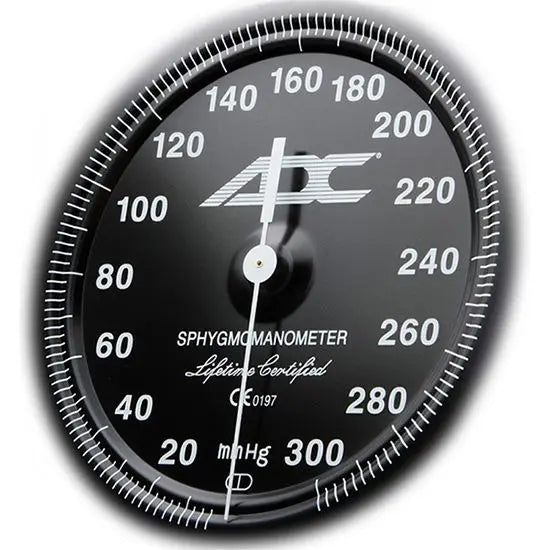

ADC 800GP Gold Plated Aneroid Gauge for Diagnostix 700/778 Pocket Sphygmomanometers - Dial

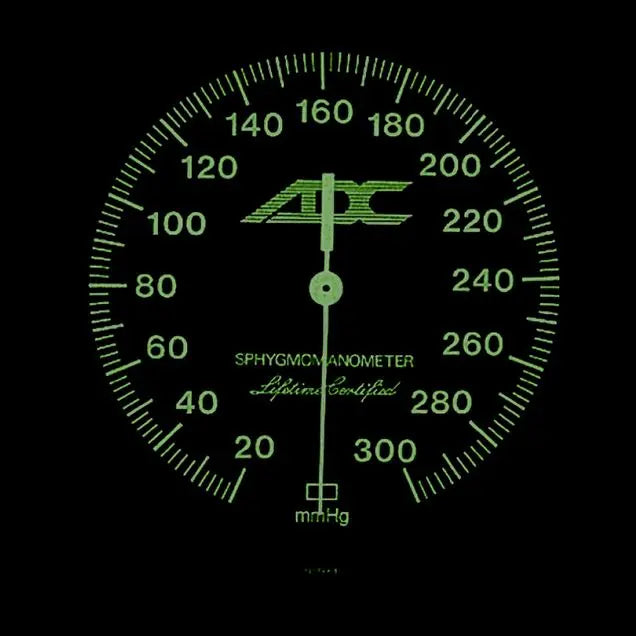

ADC 800GP Gold Plated Aneroid Gauge for Diagnostix 700/778 Pocket Sphygmomanometers - Luminescent Dial

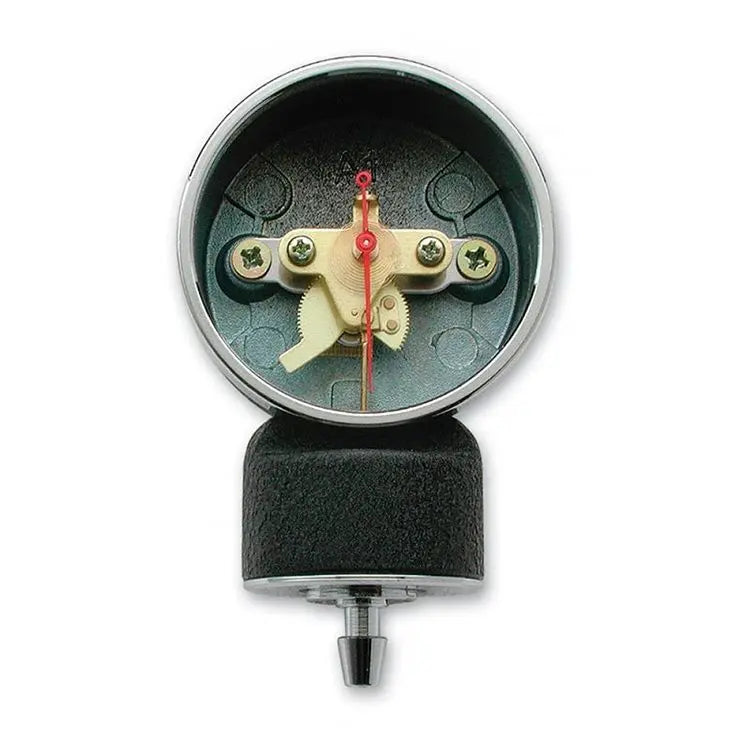

ADC 800GP Gold Plated Aneroid Gauge for Diagnostix 700/778 Pocket Sphygmomanometers - Inside of Manometer

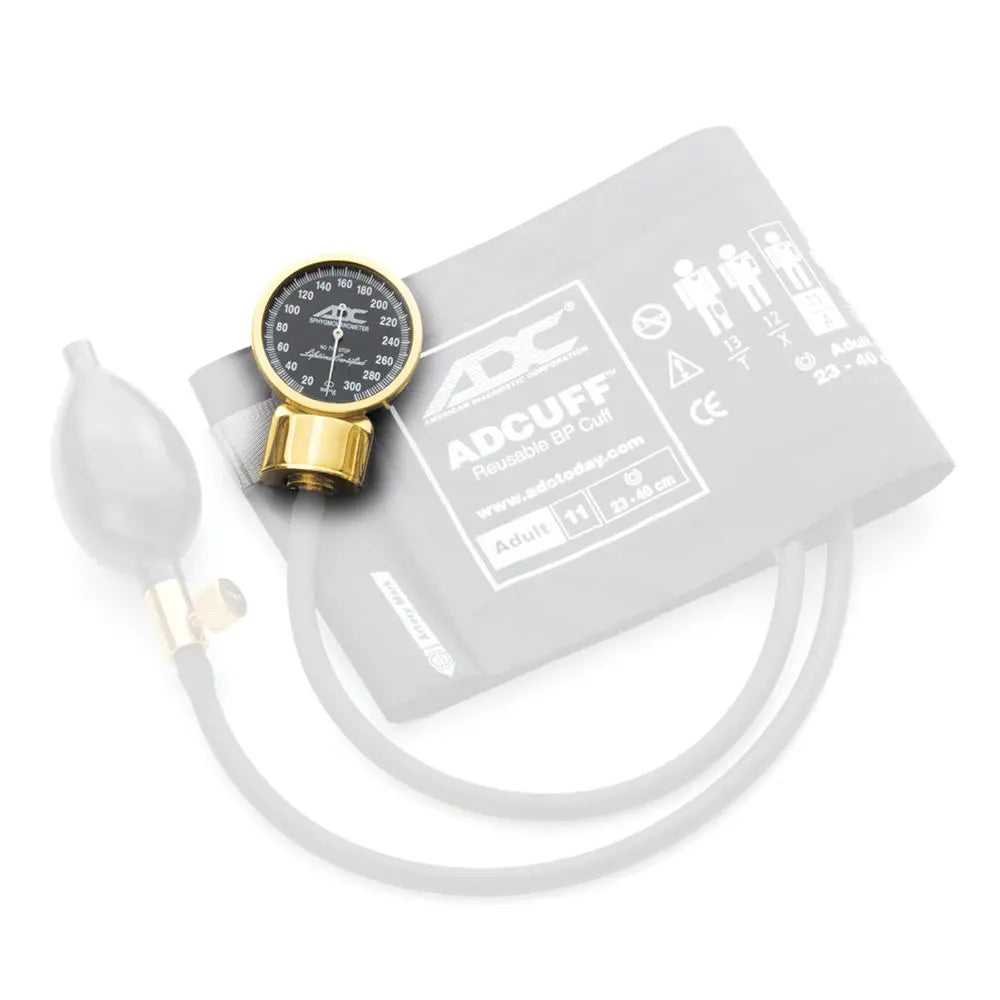

ADC 800GP Gold Plated Aneroid Gauge for Diagnostix 700/778 Pocket Sphygmomanometers - With Cuff and Bulb
ADC 800GP Gold Plated Aneroid Gauge for Diagnostix 700/778 Pocket Sphygmomanometers
ADC 800GP Gold Plated Aneroid Gauge for Diagnostix 700/778 Pocket Sphygmomanometers - Dial
ADC 800GP Gold Plated Aneroid Gauge for Diagnostix 700/778 Pocket Sphygmomanometers - Luminescent Dial
ADC 800GP Gold Plated Aneroid Gauge for Diagnostix 700/778 Pocket Sphygmomanometers - Inside of Manometer
ADC 800GP Gold Plated Aneroid Gauge for Diagnostix 700/778 Pocket Sphygmomanometers - With Cuff and Bulb
Key Features
  • SKU: ADC-800GP
  • Condition: Factory New
  • Warranty: Lifetime
  • Weight: 0.44 lb

  • Learn more:

Contact The Manufacturer
$58.44 $54.21

+ Free Shipping

Est. Delivery:
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match

Description

The ADC 800GP Gold Plated Aneroid Gauge for Diagnostix 700/778 Pocket Sphygmomanometers (#800GP) is a gold-plated, precision crafted 300 mm Hg manometer.

Warranty: Lifetime calibration warranty.

Features

ADC 800GP Gold Plated Aneroid Gauge for Diagnostix 700/778 Pocket Sphygmomanometers Features

  • This ADC 800GP Gold Plated Aneroid Gauge is designed for use on the following Sphygmomanometers and Sphygmomanometer Kits:
    • ADC Diagnostix 700 Pocket Aneroid Sphygmomanometer - Adult (#700-11AGP).
    • ADC Pro's Combo III 778-603 Pocket Aneroid/Clinician Scope Kit (#778-603-11AGP).
  • Luminescent dial features bold numerals and extended graduation marks for easy reading in all light conditions and from virtually any angle.
  • Meets or exceeds ANSI/AAMI/ISO 81060-1.
  • All gauges individually boxed.

Specifications

ADC 800GP Gold Plated Aneroid Gauge for Diagnostix 700/778 Pocket Sphygmomanometers Specifications

  • Sphyg Type: Pocket.
  • Sphyg Accuracy: +/-3 mm Hg at 50 degrees F (10 degrees C) - 104 degrees F (40 degrees C).
  • Sphyg Accuracy at Extended Temperature Range: +/-3 mm Hg or 2%. Whichever is greater at < 50 degrees F (10 degrees C) and > 104 degrees F (40 degrees C).
  • Storage Temp: -4 degrees F (-20 degrees C) - 131 degrees F (55 degrees C).
  • Valve Type: Adflow.
  • Number of Tubes Used: 2.

Media and Literature

ADC 800GP Gold Plated Aneroid Gauge for Diagnostix 700/778 Pocket Sphygmomanometers Media and Literature

ADC 2017 Product Catalog

ADC Aneroid Sphygmomanometer Accessories Instructions for Use

ADC Diagnostix Aneroid Sphygmomanometers Instructions for Use

Frequently asked questions

What sphygmomanometers is the ADC 800GP gauge compatible with?

The ADC 800GP Gold Plated Aneroid Gauge is specifically designed for use with ADC Diagnostix 700 and 778 pocket sphygmomanometers.

How many tubes are used with the ADC 800GP?

The ADC 800GP uses two tubes.

Does the ADC 800GP come with a warranty?

Yes, the ADC 800GP comes with a lifetime calibration warranty, ensuring long-term accuracy and reliability.

Does the gold-plated finish provide a premium aesthetic?

Yes, the gold-plated finish of the ADC 800GP aneroid gauge provides a premium aesthetic and a professional appearance, making it an excellent choice for medical professionals.

Is the dial on the ADC 800GP easy to read in low light conditions?

Yes, the ADC 800GP features a luminescent dial designed for easy readability in all light conditions.

Does the ADC 800GP meet high accuracy standards?

The ADC 800GP Gold Plated Aneroid Gauge meets or exceeds ANSI/AAMI/ISO 81060-1 standards, ensuring high quality and precision for medical professionals.

What type of valve does the ADC 800GP use?

The ADC 800GP operates with an Adflow valve.

What is the measurement range of the ADC 800GP?

The manometer range of the ADC 800GP is 300 mm Hg.

What is the wide storage temperature range for the ADC 800GP?

The ADC 800GP gold-plated aneroid gauge can be safely stored in temperatures ranging from -4°F (-20°C) to 131°F (55°C), ensuring its durability across various environments.

Does this gauge maintain accuracy across various temperatures?

Yes, the ADC 800GP aneroid gauge is precision-crafted to maintain high accuracy under various operating temperatures, meeting or exceeding the stringent ANSI/AAMI/ISO 81060-1 standards. The accuracy specifications are detailed as follows:<ul><li>Standard Operating Range (10°C to 40°C / 50°F to 104°F): Accuracy is +/-3 mm Hg.</li><li>Extended Operating Range (Below 10°C or Above 40°C): Accuracy is +/-3 mm Hg or 2%, whichever value is greater.</li></ul>
