ADC 800 Aneroid Gauge for Diagnostix 700/778 Pocket Sphygmomanometers

Name: ADC 800 Aneroid Gauge for Diagnostix 700/778 Pocket Sphygmomanometers
Brand: American Diagnostic Corporation
SKU: ADC-800
Price: 42.65 USD
Availability: InStock

ADC 800 Aneroid Gauge for Diagnostix 700/778 Pocket Sphygmomanometers - Luminescent

ADC 800 Aneroid Gauge for Diagnostix 700/778 Pocket Sphygmomanometers - Dial

ADC 800 Aneroid Gauge for Diagnostix 700/778 Pocket Sphygmomanometers - Luminescent Dial

ADC 800 Aneroid Gauge for Diagnostix ...

Liquid error (snippets/ced-product-media line 158): external_video_tag does not support String

Key Features

SKU: ADC-800
Condition: Factory New
Warranty: Lifetime
Weight: 0.44 lb
Learn more:

Contact The Manufacturer

MFR: American Diagnostic Corporation Ships from MFI Medical

Items shipped from the manufacturer

This item will be shipped directly from the manufacturer to your doorstep, ensuring that you receive the newest product available. The estimated delivery range provided is based on the manufacturer's inventory levels and is subject to change depending on the quantity ordered. We ship items as soon as they become available, so if you order multiple quantities, you may receive them in separate shipments.

Special order item

A special order item will need to ship to our warehouse from the manufacturer before then shipping to you. The estimated delivery range that you see is based on the information that we receive from the manufacturer, which is also contingent upon your ordered quantity and the current inventory levels of the manufacturer. We will ship the items to you as soon as they become available, which may result in multiple shipments if you order more than one quantity.
MPN: 800
Phone: (800) 232-2670

$43.90 $42.65

2+ In Stock

Est. Delivery:

Quantity

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Description

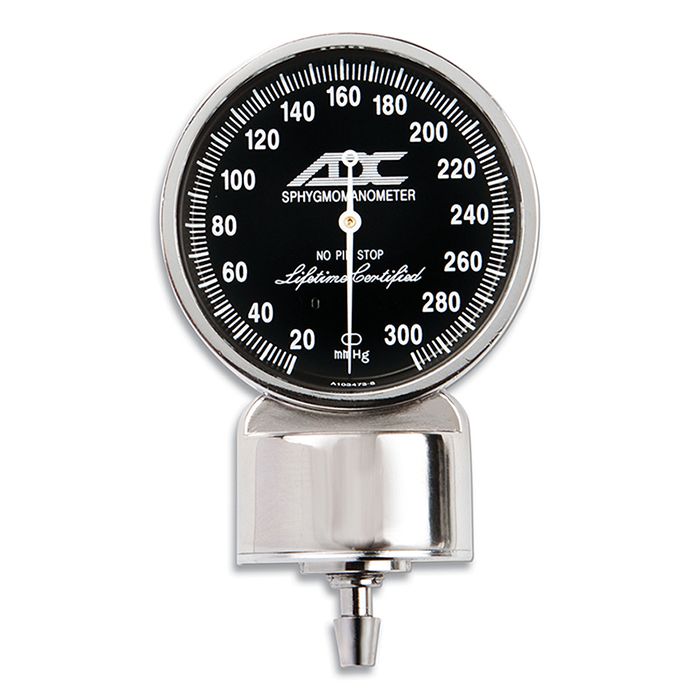

The ADC 800 Aneroid Gauge for Diagnostix 700/778 Pocket Sphygmomanometers (#800) is a chrome-plated, precision crafted 300 mm Hg manometer.

Warranty: Lifetime calibration warranty.

Features

ADC 800 Aneroid Gauge for Diagnostix 700/778 Pocket Sphygmomanometers Features

This ADC 800 Aneroid Gauge is designed for use on the following Sphygmomanometers:
- ADC Diagnostix 700 Pocket Aneroid Sphygmomanometer.
- ADC Diagnostix 778 Pocket Aneroid Sphygmomanometer.

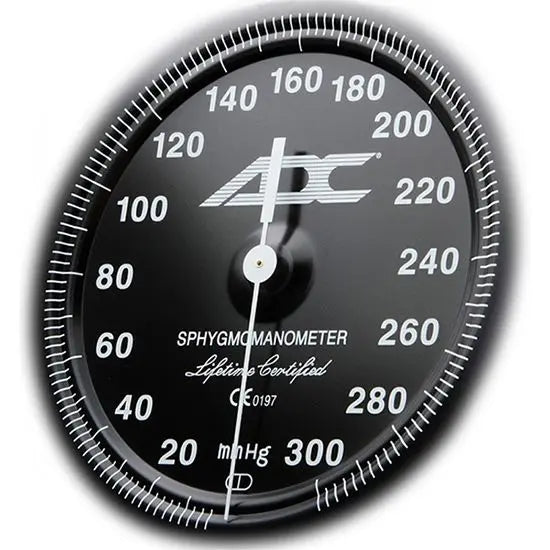

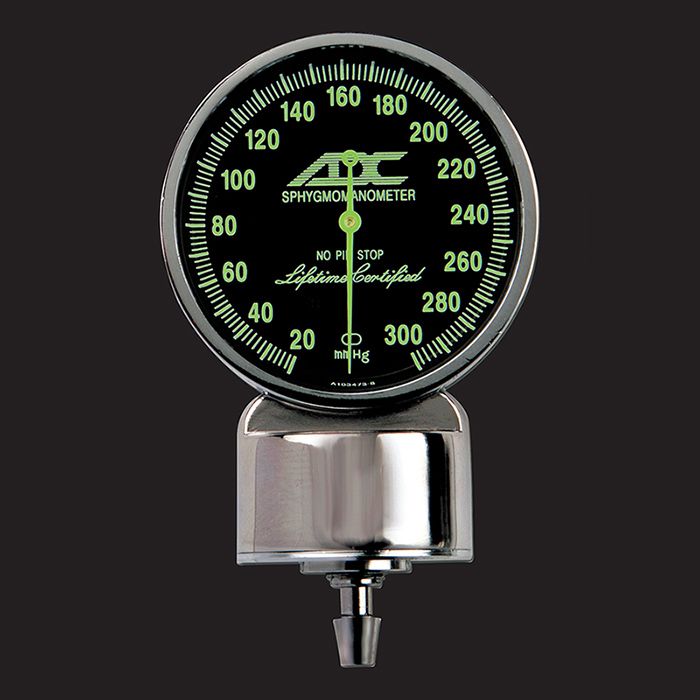

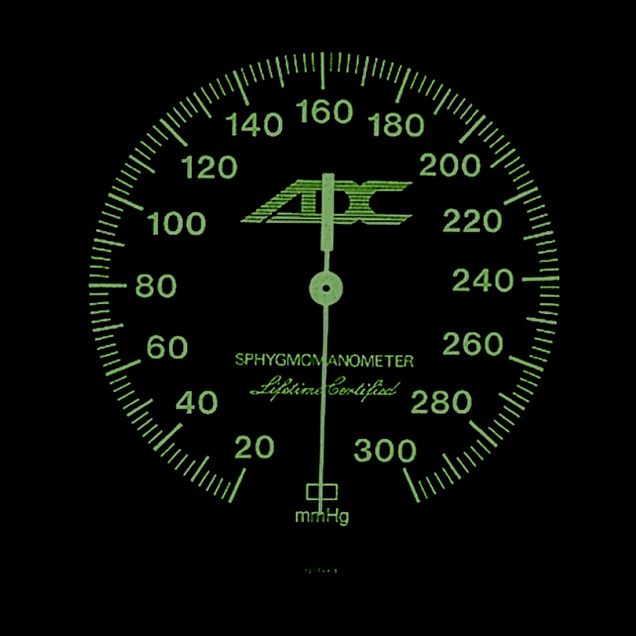

Luminescent dial features bold numerals and extended graduation marks for easy reading in all light conditions and from virtually any angle.
Individually tested to conform to ANSI/AAMI/ISO 81060-1 standards.
All gauges individually boxed.

Specifications

ADC 800 Aneroid Gauge for Diagnostix 700/778 Pocket Sphygmomanometers Specifications

Sphyg Type: Pocket.
Sphyg Accuracy: +/-3 mm Hg at 50 degrees F (10 degrees C) - 104 degrees F (40 degrees C).
Sphyg Accuracy at Extended Temperature Range: +/-3 mm Hg or 2%. Whichever is greater at < 50 degrees F (10 degrees C) and > 104 degrees F (40 degrees C).
Storage Temp: -4 degrees F (-20 degrees C) - 131 degrees F (55 degrees C).
Valve Type: Adflow.
Number of Tubes Used: 2.

Media and Literature

ADC 800 Aneroid Gauge for Diagnostix 700/778 Pocket Sphygmomanometers Media and Literature

ADC 2017 Product Catalog

ADC Aneroid Sphygmomanometer Accessories Instructions for Use

ADC Diagnostix Aneroid Sphygmomanometers Instructions for Use

Frequently asked questions

Which quality ADC sphygmomanometers is this gauge compatible with?

The ADC 800 Aneroid Gauge is specifically designed for compatibility with ADC Diagnostix 700 and ADC Diagnostix 778 pocket sphygmomanometers. It serves as a replacement gauge for these models, ensuring seamless integration and continued accurate performance.

Is the gauge compatible with other sphygmomanometer brands?

The ADC 800 Aneroid Gauge is specifically designed for ADC Diagnostix 700 and 778 pocket aneroid sphygmomanometers. Its compatibility with other brands is not guaranteed, as it is intended as a direct replacement part for these models.

Is the ADC 800 aneroid gauge highly accurate?

Yes, the ADC 800 Aneroid Gauge is precision-crafted and backed by a lifetime calibration warranty to ensure sustained accuracy.

Key details regarding its accuracy specifications:

<ul>
<li>Standard Compliance: The gauge is individually tested and conforms to the stringent ANSI/AAMI/ISO 81060-1 standards.</li>
<li>Standard Temperature Range (50°F to 104°F / 10°C to 40°C): Accuracy is maintained at +/-3 mm Hg.</li>
<li>Extended Temperature Range (< 50°F or > 104°F): Accuracy is +/-3 mm Hg or 2%, whichever measurement is greater.</li>
</ul>

Does the gauge include a reliable warranty?

Yes, the ADC 800 Aneroid Gauge comes with a lifetime calibration warranty, ensuring its accuracy over time.

Is the aneroid gauge tested to industry standards?

Yes, the ADC 800 Aneroid Gauge is individually tested and conforms to ANSI/AAMI/ISO 81060-1 standards. This ensures its accuracy and reliability.

How many tubes does the aneroid gauge connect with?

The ADC 800 Aneroid Gauge is designed to connect with two tubes.

Does the gauge have enhanced low-light visibility?

Yes, the ADC 800 Aneroid Gauge features a luminescent dial with bold numerals and extended graduation marks. This design ensures easy reading in various lighting conditions and from different angles, enhancing its utility.

Does the gauge remain accurate in extreme temperatures?

Yes, the gauge maintains high accuracy even in extreme temperatures:

<ul>
<li>Standard Temperature Range (50°F to 104°F / 10°C to 40°C): Accuracy is +/-3 mm Hg.</li>
<li>Extended Temperature Range (below 50°F / 10°C and above 104°F / 40°C): Accuracy is +/-3 mm Hg or 2%, whichever is greater.</li>
</ul>

It is also designed for a storage temperature range of -4°F (-20°C) to 131°F (55°C).
