Burton AIM-200 OR Surgical Light - Double Ceiling Mount

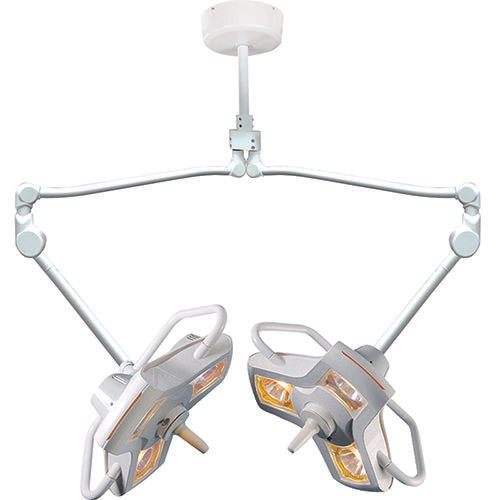

Burton AIM-200 OR Surgical Light - Double Ceiling Mount - On

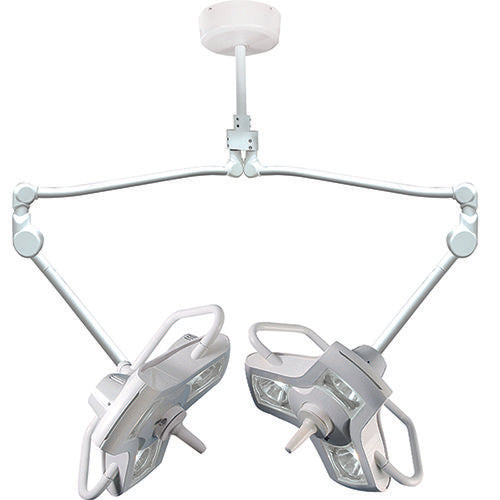

Burton AIM-200 OR Surgical Light - Double Ceiling Mount - Off

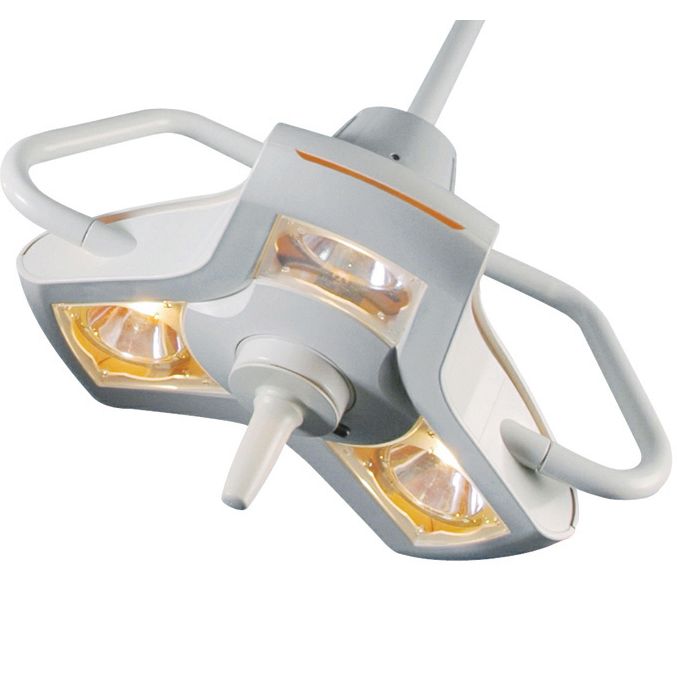

Burton AIM-200 OR Surgical Light - Head
Burton AIM-200 OR Surgical Light - Double Ceiling Mount - On
Burton AIM-200 OR Surgical Light - Double Ceiling Mount - Off
Burton AIM-200 OR Surgical Light - Head
Key Features
  • SKU: PHL-A200DC
  • Condition:
    Condition: Factory New
  • Warranty:
    Warranty: 5 Years

  • Learn more:

Contact The Manufacturer
  • MFR: Burton
    Ships from Manufacturer
  • MPN: A200DC
  • Phone: (800) 444-9909
$15,760.00 $11,660.96

+ Free Shipping

Est. Delivery:

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match

Description

The Burton AIM-200 OR Surgical Light - Double Ceiling Mount has double the power of the AIM-200 lamp, lit with (6) 50 watt halogen bulbs and over 50 inches of reach. This lamp is ideal for ambulatory surgical centers, veterinarian clinics, and hospitals.

Warranty: 5 Years Parts and Labor.

The Burton AIM-200 OR Surgical Light - Double Ceiling Mount contains two Y-shaped lamp heads on drift-free arms that can span nearly 6 feet in length. This surgical light was specially designed to adjust to the practitioner's needs, including a wide reach, adjustable light patterns and deep light field. The reflectors in the lamp can change the size and shape of the light spots, and the the depth of field measures 47 inches (119 cm). Each head can be easily positioned using the center handle, which can also be removed with a quick and release and sterilized.

With twice the power of lamp heads that have 90,000 lux of brightness each, this lamp is powerful for surgical centers in need of reliable light. It also comes ready with 1,400 hours of light.

The Burton AIM-200 OR Surgical Light - Double Ceiling Mount ships in 5 packages:

  • Head: 16 lb / 25" x 25" x 8".
  • Head: 16 lb / 25" x 25" x 8".
  • Mount: 38 lb / 34" x 14" x 8".
  • Extension Arm: 14 lb / 37" x 21" x 6".
  • Extension Arm: 14 lb / 37" x 21" x 6".

Features

Burton AIM-200 OR Surgical Light - Double Ceiling Mount Features

  • Center handle can be released with one hand, and is sterilizable and autoclavable.
  • Maximum reach of 63".
  • Reflectors allow for adjustable light patterns to fit work area.
  • 1,400 hours of light, right out of the box.
  • 6 halogen bulbs, 50 watt power.

Specifications

Burton AIM-200 OR Surgical Light - Double Ceiling Mount Specifications

  • Weight: 98 lb (45 kg).
  • Light Source: Halogen bulb - 50 W IRC, 12 V, bi-pin.
  • Illuminance: 90,000 lux (8,361 footcandles) at 39".
  • Light Color Temperature: 3,700 Kelvin.
  • Number of Bulbs: 6.
  • Bulb Life: 1,400 hours.
  • Power: 105 watts.
  • Color Rendering Index: 96.
  • Lamp Head Diameter: 20" (51 cm) each.
  • Lamp Head Swivel Radius: 60" (152 cm).
  • Vertical Height Movement: 41" (104 cm).
  • Beam Diameter: 10" - 12" (25 - 30 cm).
  • Depth of Illumination: 47" (119 cm).
  • Minimum Recommended Ceiling Height: 8 ft (244 cm).
  • Maximum Recommended Ceiling Height: 12 ft (366 cm).
  • Certifications / Approvals: UL60601-1 / IEC 60601-1 / IEC 60601-1-2 / IEC 60601-2-41; CAN/CSA C22.2 601-1 M90; CE marked.

Configurations

Burton AIM-200 OR Surgical Light - Double Ceiling Mount Configurations

  • #A200DC: 120 V - For use in the U.S.
  • #A203DC: 230 / 240 V - For use in Europe.
  • #A201DC: 100 V - For use in Japan.
  • #A202DC25: 230 V - SP Model. Refers to Spanish Language Manuals.

Accessories

Burton AIM-200 OR Surgical Light - Double Ceiling Mount Accessories

The Burton AIM-200 OR Surgical Light - Double Ceiling Mount is commonly purchased with:

  • AIM-200 OR replacement bulbs, (3 per box).
  • Sterilizable / Autoclavable Handle.
  • Sterile Handle Covers (25 per box).
  • 42" Drop Tube.

Frequently asked questions

What is the maximum illumination per lamp head?

Each lamp head on the Burton AIM-200 OR Surgical Light provides high-intensity illumination critical for surgical procedures, delivering:

  • Maximum Illuminance: 90,000 lux (8,361 footcandles), measured at a distance of 39 inches.
  • Color Rendering Index (CRI): A high CRI of 96, which ensures exceptional color accuracy for precise tissue visualization.
  • Color Temperature: 3,700 Kelvin, providing clear and consistent light.

Since this system features a double ceiling mount, the dual heads combine to deliver twice the power for maximum visibility in the operating field.

Does the surgical light offer adjustable light patterns?

Yes, the Burton AIM-200 OR Surgical Light offers adjustable light patterns through its reflectors, allowing you to customize the illumination to suit specific work areas. It also provides a substantial depth of illumination of 47 inches (119 cm) for clear visibility within the surgical field.

Does the surgical light feature a sterilizable handle?

Yes, the Burton AIM-200 OR Surgical Light features a sterilizable and autoclavable center handle on each lamp head. This design ensures that aseptic conditions can be maintained, making it ideal for surgical environments.

What is the halogen bulb life expectancy?

The Burton AIM-200 OR Surgical Light is equipped with durable halogen bulbs designed for extended use in demanding clinical environments.

  • Life Expectancy: The halogen bulbs have an estimated operational life of 1,400 hours (out of the box).
  • Bulb Type: The system uses 50 W IRC, 12 V, bi-pin halogen bulbs.
  • Quantity: The double ceiling mount configuration utilizes a total of six bulbs (three in each lamp head).
What is the expected bulb life?

The Burton AIM-200 OR Surgical Light is designed for long-term use, featuring reliable halogen bulbs. Each bulb provides substantial operational longevity for demanding surgical environments.

Here are the key specifications regarding the bulbs:

  • Bulb Life Expectancy: Each bulb has an operational life of 1,400 hours (out of the box).
  • Bulb Type: The system uses 50 W IRC, 12 V, bi-pin Halogen bulbs.
  • Total Bulbs: The double ceiling mount configuration utilizes a total of 6 Halogen bulbs (three bulbs per lamp head).
What are the light color temperature and CRI values?

The Burton AIM-200 OR Surgical Light provides high-fidelity illumination, crucial for accurate tissue rendition during surgical procedures:

  • Color Temperature: The light is calibrated to 3,700 Kelvin, providing a consistent, optimal white light for visualization.
  • Color Rendering Index (CRI): It features an excellent CRI of 96, ensuring a superior and faithful representation of natural colors.
Does this surgical light offer excellent color rendering?

The Burton AIM-200 OR Surgical Light boasts an impressive Color Rendering Index (CRI) of 96. This high CRI ensures that colors are rendered accurately and naturally, which is crucial for precise visualization during surgical procedures.

What are the supported ceiling heights?

The Burton AIM-200 is designed for flexible installation across a range of surgical environments. The recommended ceiling heights for this double ceiling mount system are:

  • Minimum Recommended Height: 8 ft (244 cm)
  • Maximum Recommended Height: 12 ft (366 cm)

This range allows the surgical light to maximize its extensive articulation, including 41 inches of vertical movement and a 63-inch maximum arm reach, ensuring optimal positioning for any procedure.

What are the ideal surgical environments for this light?

The Burton AIM-200 OR Surgical Light is ideal for various medical environments, including ambulatory surgical centers, veterinarian clinics, and hospitals. It provides powerful, adjustable illumination essential for precise surgical procedures.

Does this light offer superior positioning reach?

Yes, the Burton AIM-200 OR is designed with highly articulated, drift-free arms to provide exceptional reach and precise positioning over the surgical site.

Key features maximizing maneuverability include:

  • Maximum Reach: The extension arms provide an impressive maximum reach of 63 inches (over 5 feet).
  • Drift-Free Movement: The arms are balanced and designed to be drift-free, ensuring that once the lamp heads are positioned, they remain securely in place.
  • Extensive Swivel: Each lamp head has a large swivel radius of 60 inches (152 cm), allowing for broad coverage and high flexibility in direction.
  • Vertical Movement: The system also supports a vertical height movement of 41 inches (104 cm).
