Description

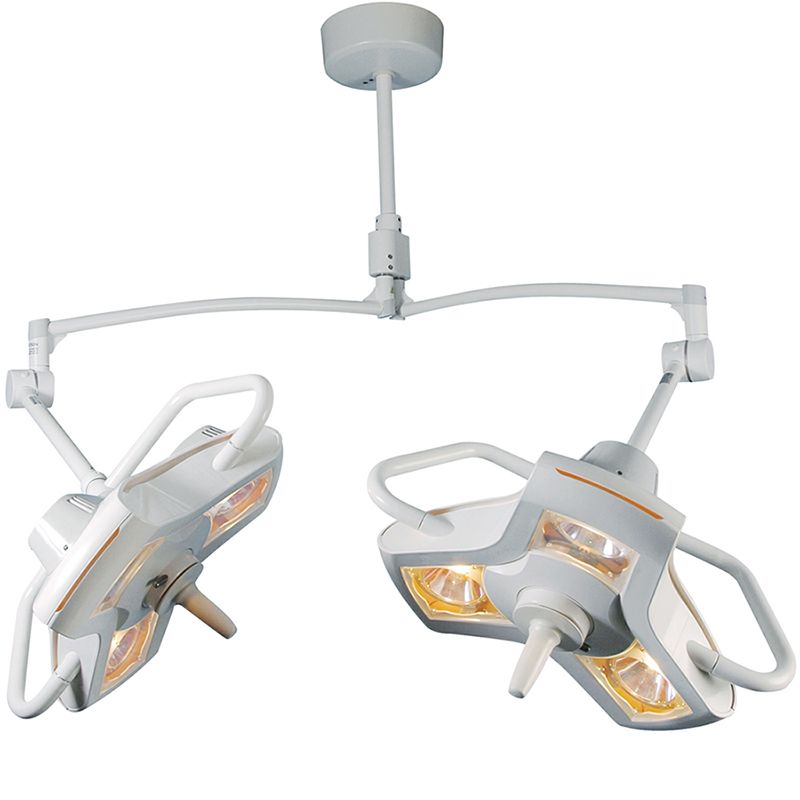

The Burton AIM-100 Surgical Light - Double Ceiling Mount combines the power of two AIM-100 lamps with six Halogen bulbs, and an adjustable ceiling base for a wide range of movement.

Warranty: 5 Years Parts and Labor.

The Burton AIM-100 Surgical Light - Double Ceiling Mount has double the smooth focus of high-powered Halogen light, and a longer arm system for easy maneuverability. The base descends from the ceiling by 20 inches, and the mounting arms stretch out to 64 inches wide. The center sterilizable handle allows for convenient, one-handed positioning.

This light configuration is most ideal for surgical procedures, especially procedures that need a wide range of focused, cool light. The unit remains cool to the touch, even after hours of use. This lamp is ideal for emergency rooms, trauma centers, and surgical areas that may be in tight or closed quarters.

The Burton AIM-100 Surgical Light - Double Ceiling Mount ships in 5 packages:

  • Head: 16.5 lb / 25" x 25" x 8".
  • Head: 16.5 lb / 25" x 25" x 8".
  • Double Ceiling Mount: 37 lb / 34" x 14" x 8".
  • Extension Arm: 14 lb / 37" x 21" x 6"
  • Extension Arm: 14 lb / 37" x 21" x 6"

Features

Burton AIM-100 Surgical Light - Double Ceiling Mount Features

  • Lightweight and adjustable with center handle.
  • Powerful 63,000 Lux per lamphead at 1 meter distance.
  • Color temperature with 3,500 Kelvin of natural coloring.
  • Available as either a 120 V or 230 / 240 V model.

Specifications

Burton AIM-100 Surgical Light - Double Ceiling Mount Specifications

  • Weight: 98 lb (44.45 kg).
  • Light Source: Quartz Halogen Bulb - 35 W / 12 V / bi-pin.
  • Illuminance: 63,000 Lux (5,852 footcandles).
  • Light Color Temperature: 3,500 Kelvin.
  • Number of Bulbs: 3.
  • Bulb Life: 2,000 hours.
  • Power: 133 Watts.
  • Color Rendering Index: 97.
  • Lamphead Diameter: 20" (51 cm).
  • Light Field Diameter: 9.6" - 12" (25 cm - 31 cm).
  • Depth of Illumination: 47" (119 cm).
  • Minimum Ceiling Height: 8 ft (244 cm).
  • Maximum Ceiling Height: 12 ft (366 cm).
  • Certifications / Approvals: IEC/UL 60601-1 / IEC 60601-2-41 / IEC/EN 60601-1-2; CAN/CSA C22.2 601-1 M90 certified; CE marked.

Configurations

Burton AIM-100 Surgical Light - Double Ceiling Mount Configurations

  • #A100DC: 120 V - For use in the U.S.
  • #A103DC: 230 / 240 V - For us in Europe.
  • #A101DC: 100 V - For use in Japan.
  • #A102DC25: 230 V - SP Model. Refers to Spanish Language Manuals.

Accessories

Burton AIM-100 Surgical Light - Double Ceiling Mount Accessories

The Burton AIM-100 Surgical Light - Double Ceiling Mount is commonly purchased with:

  • Set of 3 AIM-100 replacement bulbs.
  • Sterilizable / Autoclavable handle.
  • Sterile handle covers (25 per box).
  • 42" drop tube.
