Olympus OCS-500 Colposcope

Name: Olympus OCS-500 Colposcope
Brand: Olympus
SKU: MFI-OLY-CS-500
Price: 6988.07 USD
Availability: InStock
Rating: 5.0 (1 reviews)

Liquid error (snippets/ced-product-media line 158): external_video_tag does not support String

Key Features

SKU: MFI-OLY-CS-500
Condition:

Condition: Certified Refurbished

Condition: Certified Refurbished
Warranty:

Warranty: 90 Days

Warranty: 90 Days
Weight: 143.13 lb
Incorporates optical focusing, instead of requiring you to move the colposcope body, for sharp images within a working distance of 220 to 350 mm
Single-Handed Operation: Several different control knobs are gathered close together, so you can adjust the view field, zoom, or focus with just one hand using either a left or right grip
Eyepiece Magnification: 10x
The video system (optional) and light source can be used for Hysteroscopy
Learn more:

Contact The Manufacturer

MFR: Olympus

Ships from MFI Medical

Ships from MFI Medical

Items shipped from the manufacturer

This item will be shipped directly from the manufacturer to your doorstep, ensuring that you receive the newest product available. The estimated delivery range provided is based on the manufacturer's inventory levels and is subject to change depending on the quantity ordered. We ship items as soon as they become available, so if you order multiple quantities, you may receive them in separate shipments.

Special order item

A special order item will need to ship to our warehouse from the manufacturer before then shipping to you. The estimated delivery range that you see is based on the information that we receive from the manufacturer, which is also contingent upon your ordered quantity and the current inventory levels of the manufacturer. We will ship the items to you as soon as they become available, which may result in multiple shipments if you order more than one quantity.
Phone: (800) 401-1086

$6,988.07

Select a Configuration

Variant

3+ In Stock

Est. Delivery:

Quantity

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Description

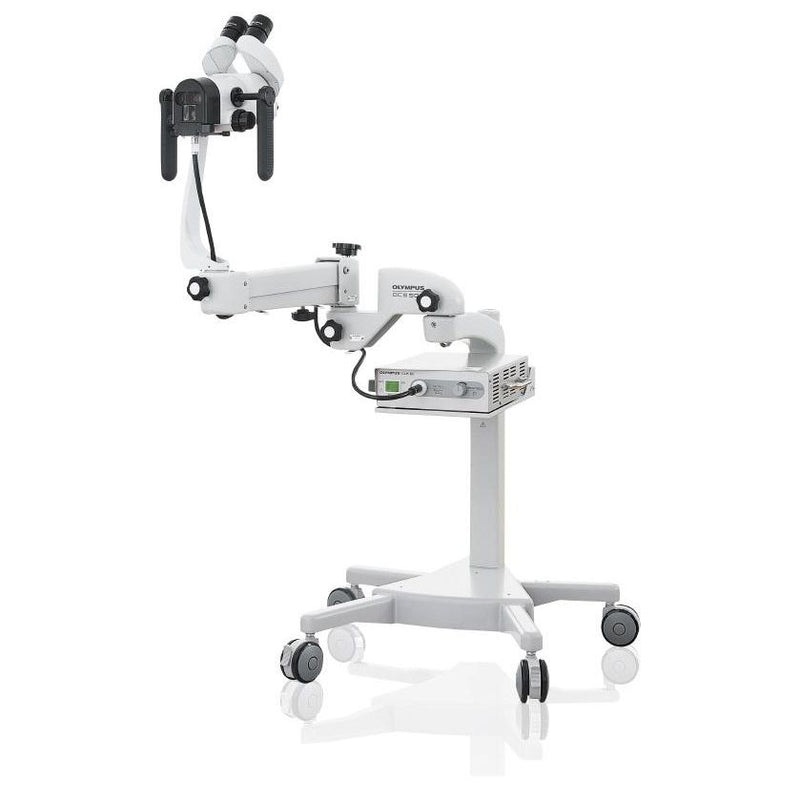

The Olympus OCS-500 Colposcope includes the zoom microscope body, balance arm, horizontal arm, stand, floor stand base, and a halogen light source with fiber optic light cable. The video configuration also includes a CCD camera and a BNC cable.

Warranty: 90 Days - Parts and Labor.

The OCS-500 Colposcope combines high quality digital imaging, extended magnification, and smooth maneuverability, making this the key to more efficient office Gynecology. The versatility of this system allows for greater range of examination, recording, and editing.

The OCS-500's video system (optional) and light source can be used for Hysteroscopy. Thanks to the adoption of an eyepiece mount, switching from Colposcopy to Hysteroscopy is quick and easy.

Features

Olympus OCS-500 Colposcope Features

Refined Optical Performance: The OCS-500 incorporates optical focusing, instead of requiring you to move the colposcope body, for sharp images within a working distance of 220 to 350 mm. In addition, non-step continuous zoom allows 6x zoom at variable distances for magnification from 2.7x - 23.4x.
Colposcopy and Hysteroscopy in a Single System: The OCS-500's video system and light source can be used for Hysteroscopy. Thanks to the adoption of an eyepiece mount, switching from Colposcopy to Hysteroscopy is quick and easy.
Single-Handed Operation: Several different control knobs are gathered close together, so you can adjust the view field, zoom, or focus with just one hand using either a left or right grip.
Digital Documentation: In addition to colposcopic image digital recording, hysteroscopic image digital recording is possible with a digital camera. Using a digital color photo printer, recorded images stored in SD memory cards can be printed in no time.
Compatible with the following Video Systems:

Olympus OTV-S7V VISERA Endoscopic Camera System.
OTV-SC Video Systems.

Compatible with the following Light Sources:

CLV-S40/S45 VISERA Xenon Light Source.
CLH-SC Halogen Light Source.

Specifications

Olympus OCS-500 Colposcope Specifications

Operating Air Temperature: 50 to 104 °F (10 to 40 °C).
Dimensions: 23.5" (Pedestal Base) x 55" (Overall Height) (60 cm x 140 cm).
Eyepiece:

Magnification: 10x.
Field Number: 22.

Zooming:

Drive System: Manual Drive by knob rotation.
Zoom Ratio: 1:6.

Focusing:

Focus System: Adjustable focal length.
Drive System: Manual Drive by knob rotation.
Focus Adjustment Range: 220 - 350 mm.

Illumination:

System: Light guide.
Filter: Detachable green filter.

Magnifications:

WD220: 3.7 - 23.4X.
WD300: 3.0 - 18.8X.
WD350: 2.7 - 16.9X.

Field Of View:

WD220: 58.5 - 9.3 mm.
WD300: 73.1 - 11.6 mm.
WD350: 82.4 - 13.1 mm.

Floorstand:

Support System: Floorstand.
Balancing System: Pantographic arm balancing using spring.
Balance Adjustment Range: 4 - 7 kg.
Balance Adjustment: Handle Adjusted.
Binocular Tube Tilt: 10° upward and 30° downward relative to the horizontal observation optical axis.
Vertical Arm Movement Range: 300 mm.
Arm Rotation Range: 270°.

Configurations

Olympus OCS-500 Colposcope Configurations

#MFI-OLY-CS-500: Standard (No Video).
#MFI-OLY-CS-500-VIDEO: With Video.

Literature

Olympus OCS-500 Colposcope Literature

Olympus OCS-500 Colposcope Brochure

Frequently asked questions

Does the OCS-500 have a wide focus range?

Yes, the Olympus OCS-500 features a wide and versatile focus working distance designed to maximize efficiency during examinations. This system uses refined optical focusing, allowing you to maintain sharp, high-definition images across the entire range without needing to physically reposition the main microscope body.Key specifications for the focusing system include:* Focus Adjustment Range: The adjustable focal length spans from 220 mm to 350 mm.* Operation: Focus is controlled via manual knob rotation, which is part of the system’s ergonomic design allowing for smooth, single-handed operation (along with the zoom and view field controls).

Does the OCS-500 support advanced digital documentation?

Yes, the Olympus OCS-500 is engineered to support high-quality digital documentation for both colposcopic and hysteroscopic procedures. This system allows for the recording and printing of patient examinations to improve clinical record-keeping.

To enable these capabilities, ensure you select the “With Video” configuration. This model includes a dedicated CCD camera and BNC cable to facilitate digital imaging. Key benefits include:

<ul>
<li>Seamless Integration: Designed to pair with compatible Olympus video systems, such as the OTV-S7V VISERA or OTV-SC series, for optimal performance.</li>
<li>Direct Documentation: Supports the ability to print documentation directly via compatible digital color photo printers.</li>
<li>Versatile Utility: Ideal for capturing and archiving images during both routine colposcopy and diagnostic hysteroscopy.</li>
</ul>

What is included in the standard colposcope package?

The standard configuration of the Olympus OCS-500 provides a comprehensive system engineered for efficient office gynecology, focusing on high-precision optical performance and smooth maneuverability.

Key components included in the standard package are:

<ul>
<li>Zoom Microscope Body: The core optical component, featuring non-step continuous zoom and adjustable focal length (220 mm to 350 mm).</li>
<li>Illumination System: A Halogen light source along with the necessary fiber optic light cable.</li>
<li>Stand Assembly: Includes the floor stand base, main stand, horizontal arm, and a spring-balanced balance arm designed for ergonomic, single-handed control.</li>
</ul>

If you select the optional ‘With Video’ configuration, it additionally includes a CCD camera and a BNC cable for digital documentation capabilities.

Is a detachable green filter included for contrast enhancement?

Yes, the Olympus OCS-500 Colposcope includes a detachable green filter as a standard feature of its illumination system.

This filter is crucial for gynecological examinations because it:

<ul>
<li>Significantly enhances contrast.</li>
<li>Improves the visualization of blood vessels and tissue structure.</li>
</ul>

The base unit utilizes a light guide connected to a Halogen light source and includes a fiber optic light cable. The system offers versatility and is compatible with other Olympus light sources, such as the CLV-S40/S45 VISERA Xenon Light Source and the CLH-SC Halogen Light Source.

Is the OCS-500 Colposcope easy to maneuver and adjust?

Yes, the Olympus OCS-500 Colposcope is engineered for efficient and easy manipulation during examinations, featuring several design elements that enhance usability:

<ul>
<li>Intuitive Single-Handed Operation: Critical control knobs for zoom, focus, and field adjustment are conveniently grouped, allowing the user to operate these functions with a single hand (left or right grip).</li>
<li>Optical Focusing: The system utilizes refined optical focusing (adjustable from 220 mm to 350 mm) to achieve sharp images, eliminating the need to move the entire colposcope body for focal adjustments.</li>
<li>Fluid Movement: The unit is supported by a floor stand with a spring-balanced pantographic arm system, providing smooth maneuverability. The arm allows for 270° rotation and 300 mm of vertical movement. The balance is easily adjusted via a handle to maintain stable positioning.</li>
</ul>

Does the Olympus OCS-500 support hysteroscopy?

Yes, the Olympus OCS-500 Colposcope is designed for dual functionality and can be adapted for Hysteroscopy procedures.

To utilize this feature, the system must be equipped with the optional video configuration (which includes a CCD camera and BNC cable) and a compatible light source. The conversion is performed quickly and easily using an eyepiece mount, allowing for comprehensive digital documentation of both types of procedures.

Which Olympus camera and light sources are compatible?

The Olympus OCS-500 Colposcope is designed to integrate seamlessly with specific Olympus video and light source systems, which are vital for digital documentation and enabling its dual Colposcopy/Hysteroscopy functionality.

<h3>Compatible Video and Camera Systems</h3>
These systems allow for the high-resolution capture and digital storage of both colposcopic and hysteroscopic images:
<ul>
<li>Olympus OTV-S7V VISERA Endoscopic Camera System</li>
<li>Olympus OTV-SC Video Systems</li>
</ul>

<h3>Compatible Light Sources</h3>
Optimal illumination for detailed examinations is ensured using these external light sources:
<ul>
<li>CLV-S40/S45 VISERA Xenon Light Source</li>
<li>CLH-SC Halogen Light Source</li>
</ul>

What is the variable magnification range?

The Olympus OCS-500 utilizes a high-performance optical system with non-step continuous zoom (1:6 zoom ratio), offering a wide variable magnification range.

The total magnification ranges from 2.7x up to 23.4x, depending on the working distance (WD):

<ul>
<li>Minimum Magnification (2.7x): Achieved at the maximum working distance of 350 mm.</li>
<li>Maximum Magnification (23.4x): Achieved at the minimum working distance of 220 mm.</li>
</ul>

The unit features optical focusing across the 220 mm to 350 mm working distance range, ensuring sharp images without the need to move the colposcope body.
