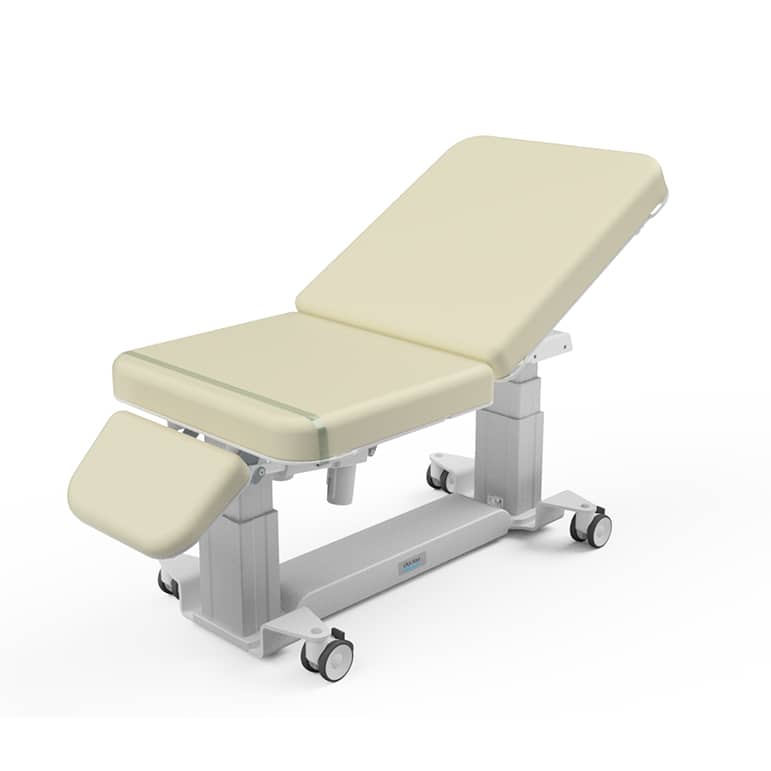

OakWorks General 3-Section Top EA Ultrasound Table

Yes, the OakWorks General 3-Section Top EA Ultrasound Table comes standard with essential components to enhance safety and workflow:

• Locking Casters: The table includes 4-inch (10 cm) locking casters. These allow you to easily move the 359 lb unit when necessary and securely lock it in place during procedures for patient safety and stability.
• Paper Roll Holder: A standard paper roll holder is included, facilitating quick and hygienic surface changes between patient exams.

Yes, the OakWorks General 3-Section Top EA Ultrasound Table features four distinct powered motions as part of its Ergonomic Advantage (EA) design. These adjustments are managed via a multi-function hand control and are essential for facilitating precise patient positioning while helping to minimize the risk of sonographer injury.

The comprehensive powered movements include:

• Electric Height Adjustment: Ranges from 19 in (48 cm) up to 33 in (83 cm).
• Electric Trendelenburg/Reverse Tilt: Articulates up to ±18°.
• Electric Fowler Backrest: Adjusts from 0° up to 75°.
• Electric Leg Rest: Articulates from 0° up to 90°.

This robust system safely supports patients up to 550 lb (250 kg).

The OakWorks General 3-Section Top EA Ultrasound Table offers a wide electric height adjustment range (Motion 1) crucial for optimizing patient transfer and minimizing sonographer strain.

This range is managed via the multi-function hand control, providing:

• Minimum Height: 19 inches (48 cm)
• Maximum Height: 33 inches (83 cm)

This capability is a core feature of the table’s Ergonomic Advantage design, ensuring the optimal working height for sonographers during procedures.

Yes, this table is equipped with four distinct powered motions, controlled via a multi-function hand control. This extensive powered articulation is a key component of the Ergonomic Advantage (EA) design, allowing the unit to function seamlessly as both an exam table and a chair while streamlining patient positioning.

The electric adjustments and their precise ranges are:

• Height Range: 19 in (48 cm) to 33 in (83 cm)
• Trendelenburg/Reverse Tilt: ±18°
• Electric Fowler Backrest Angle: 0° to 75°
• Electric Leg Rest Articulation: 0° to 90°

The OakWorks General 3-Section Top EA Ultrasound Table can be customized with several optional features to enhance workflow, control, and patient safety. Since this product is made to order, these features must be specified and added at the time of purchase.

Optional upgrades include:

• Foot Control: Allows hands-free operation of the table’s four electric motions (Height, Trendelenburg/Reverse Tilt, Fowler Backrest, and Leg Section).
• Battery Backup: Provides essential power continuity, ensuring the table remains fully adjustable even during a power outage.
• Central Base Locking System: Offers a secure, centralized mechanism to quickly and firmly lock the table in position.
• Side Rails (Set of 2): Enhances patient safety and assists staff with safe transfers.
• Retractable Foot Rests (Stirrups): Provides specialized positioning for specific examinations.
• Procedure Tray: A convenient 2-quart capacity tray for holding necessary instruments and supplies.
• Cardio Panel and Adjustable Access Back Support: This specialized configuration (only available for the 30-inch width option) includes an Electric Sliding Cardio Panel and electric access panels on the sides to optimize access for cardiac or lateral procedures.

The OakWorks General 3-Section Top EA Ultrasound Table offers a robust and secure platform for patient examinations. It is engineered to support a maximum weight capacity of:

• 550 lb (250 kg)

This high capacity ensures stability across a wide range of patients.

Yes, the OakWorks General 3-Section Top EA Ultrasound Table utilizes a premium, high-quality TerraTouch upholstery system, designed specifically for clinical environments.

This material system prioritizes safety, durability, and patient comfort:

• Medical Grade: The upholstery is PVC-free TerraTouch fabric, which is Medical Grade and built to withstand rigorous clinical cleaning and usage.
• Safety Certified: TerraTouch is ISO 10993 Certified (covering Cytotoxicity, Skin Irritation, and Sensitization), confirming its high standard for patient contact safety.
• Comfort Padding: The table features a removable padding system that uses 3 inches (8 cm) of Comfort Foam for superior patient support during procedures.
• Color Options: The TerraTouch fabric is available in 11 colors, including shades like Coal, Heron, Stone, and Sapphire, allowing for customization.

Yes, this table is specifically engineered for sonography and designed for high compatibility and efficient workflow with various imaging systems.

Key features supporting equipment compatibility include:

• Sleek Base Design: The base is structured to be sleek, ensuring unobstructed access and compatibility with ultrasound apparatus during examinations.
• Ergonomic Advantage (EA): As part of the EA line, the table incorporates design principles that help reduce the potential for sonographer injury, improving the overall scanning environment.
• Powered Adjustability: The four electric motions (Height, Tilt, Backrest, and Leg Rest) allow for precise and streamlined patient positioning essential for comprehensive ultrasound procedures.

Yes, the table is upholstered with premium materials designed for clinical environments, prioritizing patient comfort and safety. The upholstery system includes:

• Fabric: It uses TerraTouch fabric, which is premium, PVC-free, and medical grade.
• Certification: The TerraTouch fabric is ISO 10993 Certified, ensuring it meets rigorous biocompatibility standards.
• Padding: The removable padding system uses 3 in (8 cm) Comfort Foam for optimal patient support during procedures.

The OakWorks General 3-Section Top EA Ultrasound Table features four precision-controlled electric adjustments. These movements are designed by ergonomic specialists to minimize manual effort, enhance patient positioning efficiency, and significantly reduce sonographer strain.

All motions are controlled using the included multi-function hand control, allowing the table to quickly transform between an exam table and an exam chair:

• Electric Height: Adjusts from a low access height of 19 inches (48 cm) up to 33 inches (83 cm).
• Electric Trendelenburg/Reverse Tilt: Provides tilting capability up to ±18°.
• Electric Fowler Backrest: Articulates the back angle from 0° (flat) up to 75°.
• Electric Leg Rest: Moves the leg section from 0° up to 90°.

Note: A Foot Control is available as an optional upgrade to operate all powered movements for hands-free positioning.
