Masimo Root Monitor

Name: Masimo Root Monitor
Brand: Masimo
SKU: MSO-9515
Price: 2810.0 USD
Availability: InStock

Masimo Root Monitor

Masimo Root Patient Monitoring and Connectivity Platform

Masimo Root Patient Monitoring and Connectivity Platform

Key Features

SKU: MSO-9515
Condition:

Condition: Factory New

Condition: Factory New
Country of Origin: Mexico

Country of Origin: Mexico
Warranty:

Warranty: 1 Year

Warranty: 1 Year
Designed to provide built-in integration to multiple standalone devices such as IV pumps, ventilators, beds, or other patient monitors
Instantly interpretable, high-visibility display with intuitive, multi-touch navigation
Docking capabilities for the handheld Radical-7 Pulse Oximeter (#9500)
Plug-and-play expansion capabilities allow clinicians to centralize patient monitoring by bringing together advanced rainbow SET Pulse CO-Oximetry, brain function monitoring, regional oximetry, and capnography measurements
Learn more:

Contact The Manufacturer

MFR: Masimo

Ships from MFI Medical

Ships from MFI Medical

Items shipped from the manufacturer

This item will be shipped directly from the manufacturer to your doorstep, ensuring that you receive the newest product available. The estimated delivery range provided is based on the manufacturer's inventory levels and is subject to change depending on the quantity ordered. We ship items as soon as they become available, so if you order multiple quantities, you may receive them in separate shipments.

Special order item

A special order item will need to ship to our warehouse from the manufacturer before then shipping to you. The estimated delivery range that you see is based on the information that we receive from the manufacturer, which is also contingent upon your ordered quantity and the current inventory levels of the manufacturer. We will ship the items to you as soon as they become available, which may result in multiple shipments if you order more than one quantity.
MPN: 9515

MPN: 9695
Phone: (800) 326-4890

$2,810.00

Select a Configuration

Variant

Est. Delivery:

Quantity

Earn [points_amount] when you buy this item.

Shop with Confidence

Description

The Masimo Root Monitor provides an expandable patient monitoring and connectivity hub platform that offers breakthrough Masimo rainbow and Masimo SET measurements with other breakthrough parameters in an integrated, clinician-centric platform.

Note: Pulse Oximeter not included. Compatible Radical-7 Pulse Oximeter (#9500) is sold separate.

Warranty: 1 Year.

The Root Monitor can be configured in a variety of options to meet your needs. If you would like a customized configuration, please contact our expert sales team for more information.

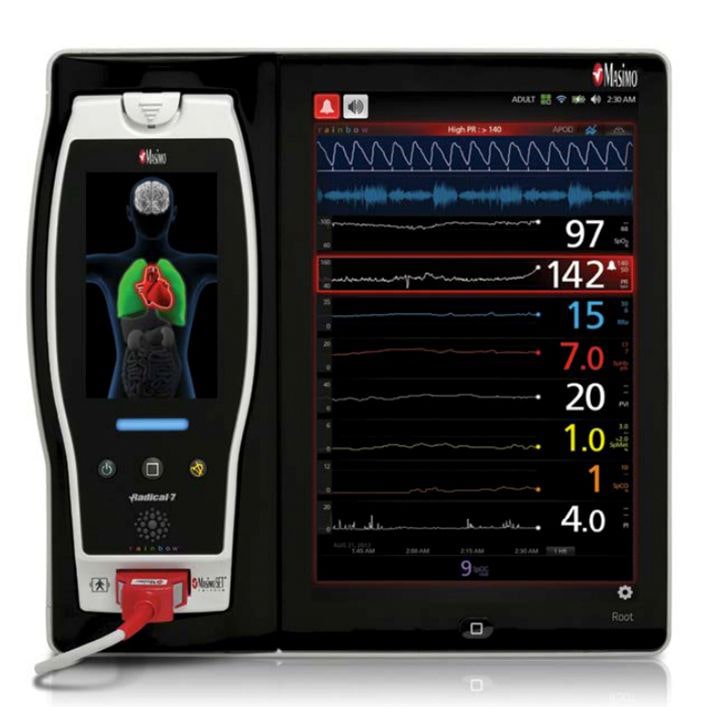

With docking capabilities for the handheld Radical-7 Pulse Oximeter (#9500) or patient-worn Radius-7 Pulse Oximeter, an instantly interpretable display, and multiple networking/connectivity options, Root integrates multiple streams of data and simplifies patient care workflows, empowering caregivers to help make quick patient assessments throughout the continuum of care.

The Root's plug-and-play expansion capabilities allow clinicians to centralize patient monitoring by bringing together advanced rainbow SET Pulse CO-Oximetry, brain function monitoring, regional oximetry, and capnography measurements on an easy-to-interpret, customizable display. Root serves as a central connectivity hub, with automated electronic charting of Masimo and third-party device data to patient data management systems (PDMS), which may improve clinician workflows through the reduction of manual data documentation.

Features

Masimo Root Monitor Features

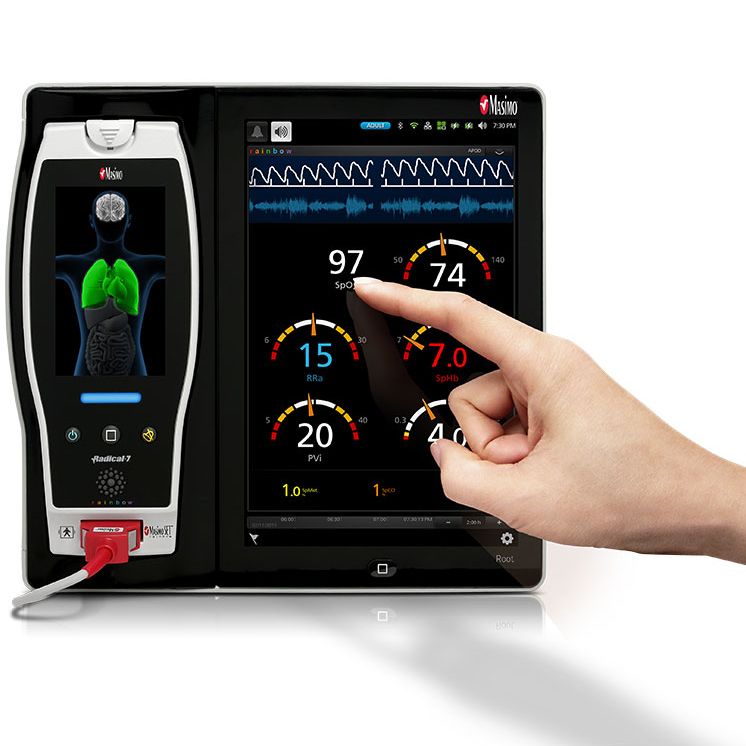

Instantly interpretable, high-visibility display with intuitive, multi-touch navigation for easy and adaptable use in hospital environments. Clinicians can customize the Root display to feature the most applicable data for the current patient or case.
Flexible measurement expansion capability through software upgrades and Masimo Open Connect (MOC-9) modules - including Next Generation SedLine Brain Function Monitoring, O3 Regional Oximetry, and ISA Capnography modules. Third-party measurement expansion allows other companies to expand the Root platform with their own technology, while following Masimo's established development and validation process.
Built-in connectivity gateway through Iris, Root is designed to provide built-in integration to multiple standalone devices such as:

IV pumps.
Ventilators.
Beds.
Other patient monitors.

Automatic display of parameters, waveforms, and viewing configuration based on the clinician's presence through MyView technology. Customizable trend or analog views.
The SedLine Brain Function Module (optional): Provides insight into a patient's depth of anesthesia and sedation. The product is a state-of-the-art EEG-based brain function monitor utilizing four simultaneous EEG channels.
ISA Capnography Module (optional): Offers sidestream monitoring with minimal warm-up time.

NomoLine Technology: Reduces disposable costs through extended monitoring and use of non-proprietary cannulas.

Specifications

Masimo Root Monitor Specifications

Weight: 8 lb (3.63 kg).
Dimension: 11" x 10.5" x 5.5" (27.94 cm x 26.67 cm x 13.97 cm).
Display:

Type: Backlit Active Matrix TFT LCD.
Resolution: 1280 x 800 Pixels.
Color: 24 bit RGB.
Size: 10.1" (25.65 cm) Diagonal.
Touchscreen Type: Multi-Touch P-Cap.

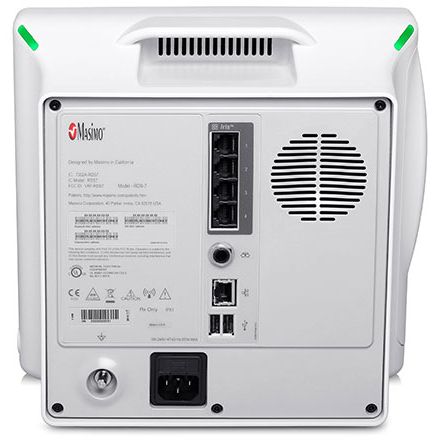

Connectors:

Nurse Call: 1/4" Round Female.
MOC-9: Masimo Connector (3 Ports).
USB: USB 2.0 (2 Ports).

Battery:

Type: 10.8 V Lithium Ion (Nominal).
Capacity: 4 Hours (approximate).
Maximum Charging Time: 4 Hours.

Electrical:

AC Power Requirements: 100 to 240 VAC, 47 to 63 Hz.
Power Consumption: 65 W (Max).
Fuses Each With: 2 Amp, Fast Acting, Metric, (5 x 20 mm), 250 V.

Configurations

Masimo Root Monitor Configurations

#9515: Standard.

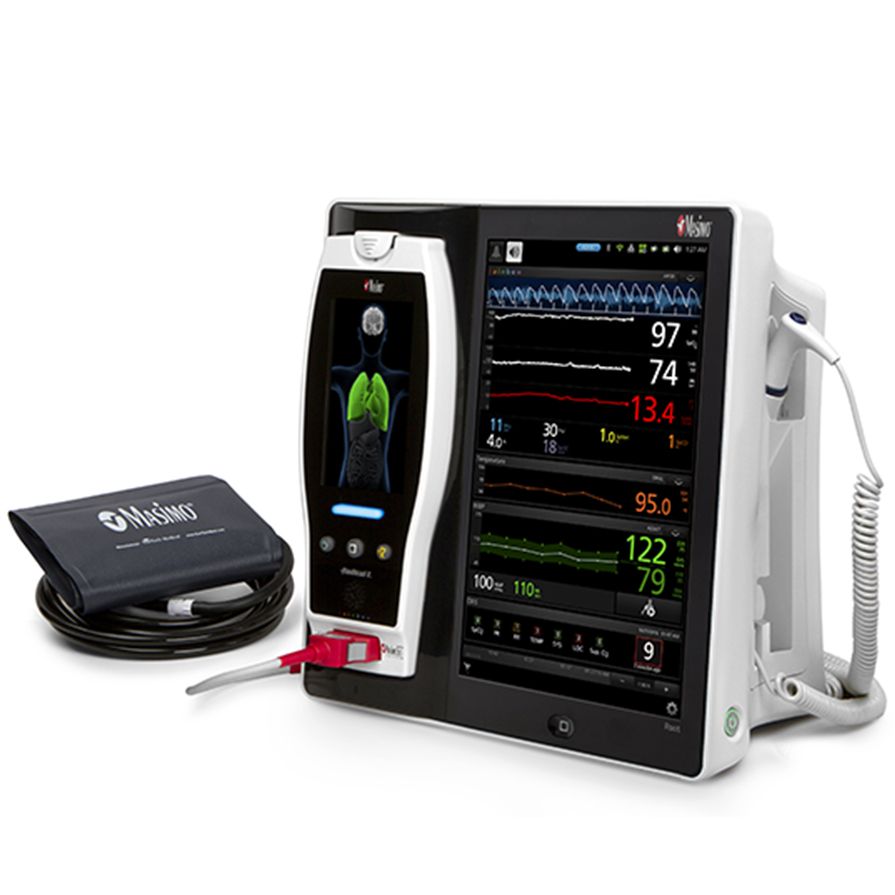

#9695: With Adult NIBP Cuff and Oral Temperature Probe.

Accessories

Masimo Root Monitor Accessories

The following accessories are compatible and commonly purchased with the Root Monitor. They may be purchased with your monitor or separately. The Root Monitor can be configured with some of these accessories factory installed:

#3738: NomoLine Adapter (25/Box).
#9513: SedLine Module Kit.
#25247: NIBP Patient Hose - Male Quick Connect.
Reusable Blood Pressure Cuff (5/Pack):
- #25303: Infant (8 - 13 cm).
- #25260: Child (12 - 19 cm).
- #25261: Small Adult (17 - 25 cm).
- #25262: Adult (23 - 33 cm).
- #25263: Large Adult (31 - 40 cm).
#300238: Roll Stand with Quick Connect.
