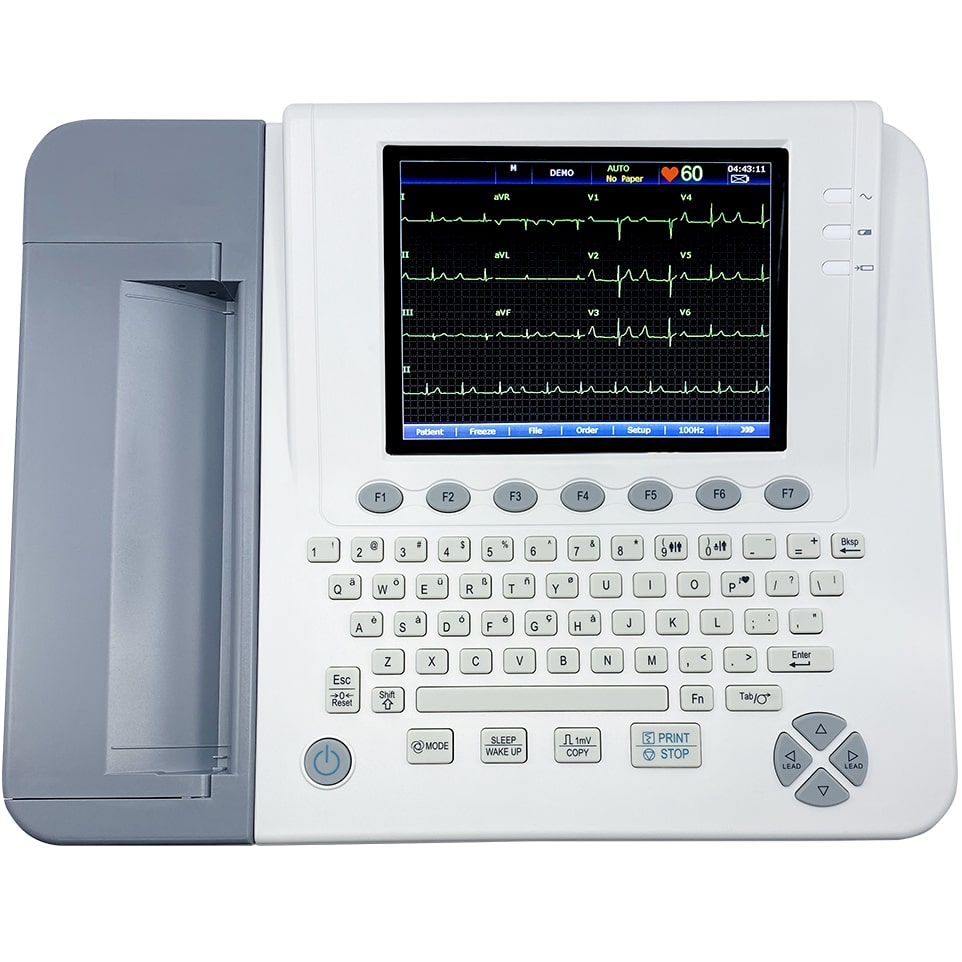

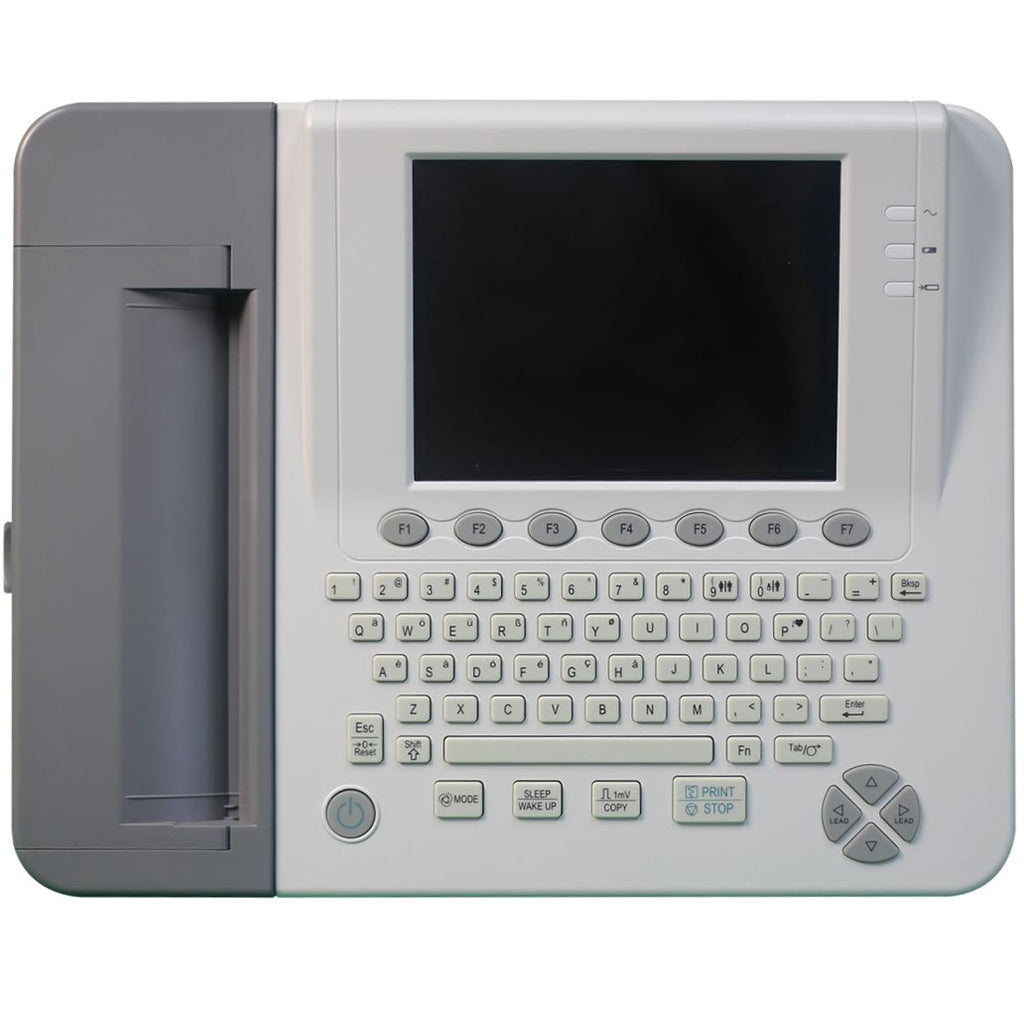

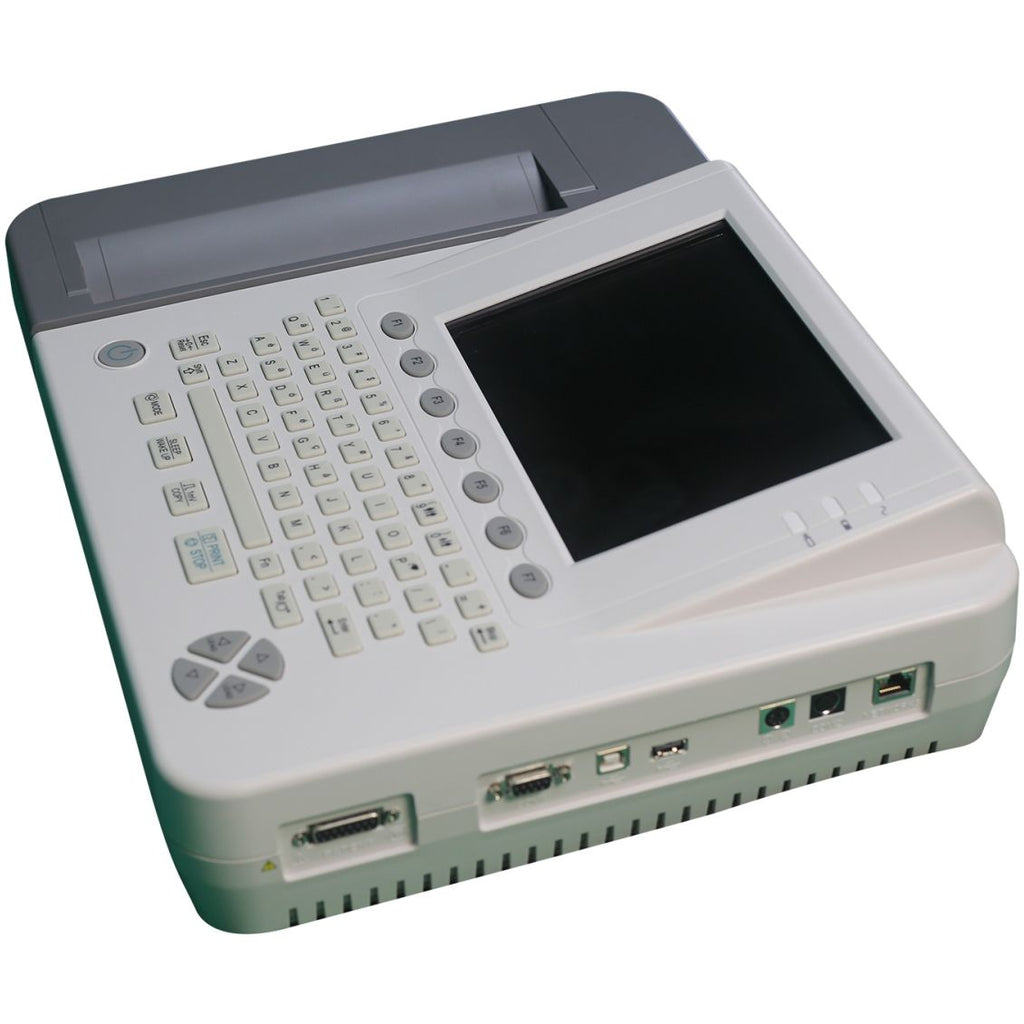

Edan SE-1200 Express Basic 12-Channel ECG

Edan SE-1200 Express Basic 12-Channel ECG Features

• User-Friendly Design:
  • 8" LCD screen for optimal viewing.
  • Alphanumeric keyboard.
  • Onboard PDF creator to transmit data to USB.
  • Built-in rechargeable Lithium battery, AC/DC supply.
• Expert Communications:
  • Auto analyzing and diagnostic software.
  • Glasgow Interpretation.
  • Preview/printing for waveform and analysis.
  • Wifi Module for use with SE-1515 Software.
  • 800 ECG memory.
• Streamlined Workflow:
  • One touch operation with age and gender shortcuts.
  • Support barcode scanner to simplify workflow (optional).
• Accurate Clinical Performances:
  • Enhanced weak signal detection with the most advanced 24 bits A/D converter technology.
  • Anti-noise technology with comprehensive filters and the high CMRR over 115 dB.
  • 120s real-time ECG waveforms freezing and review to assist your diagnosis.
  • Automatic measurements and interpretation tested by CSE/AHA/MIT database and advanced SEMIP algorithm.
  • Extended printing once arrhythmia is detected to further rhythm analysis.
  • Integrated advanced ECG analysis (Vector ECG).
• Flexible Printing Solutions:
  • Built-in high resolution thermal recorder to print on normal thermal paper and A4 size fax paper.
  • External USB printer support.

Edan SE-1200 Express Basic 12-Channel ECG Specifications

• Weight: 11 lb (5 kg) excluding recorder paper and battery.
• Dimensions: 16.5" x 13" x 4.7" (420 mm x 330 mm x 120 mm).
• Display: 8" (800 x 600 multicolor LCD screen).
• Power Supply:
  • Mains Supply:
    • Operating Voltage: 100 to 240 V.
    • Operating Frequency: 50/60 Hz.
    • Input Current: 0.9 to 0.4 A.
  • Internal Li-ion Battery Pack:
    • Rated Voltage: 14.8 V.
    • Rated Capacity: 2500/5000 mAh (1.5/2.5 hours continuous printing, 300/450 ECG reports).
    • Necessary Charge Time: 3/6 hours.
• Recording:
  • Recorder: Thermal dot-matrix recorder.
  • Printing Density:
    • 8 dots per mm / 200 dots per inch (amplitude axes).
    • 40 dots per mm / 1000 dots per inch (time axes, at 25 mm/s).
  • Recorder Paper: SE-12P - Z-Fold Thermal Paper (210 mm x 295 mm x 100 pages).
  • Paper Speed: 5 mm/s, 6.25 mm/s, 10 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s.
  • External Printer: HP1010/1510, HP M401, HP 1020/1020PLUS/1106, HP 2010/1050/2000, HP 2015/2035, HP 1525.
• HR Recognition:
  • HR Range: 30 to 300 BPM.
  • Accuracy: ± 1 BPM.
• ECG Unit:
  • Leads: 12 standard.
  • Acquisition Mode: 12 leads simultaneously.
  • A/D Converter: 24 bits.
  • Resolution: 2.52 µV/LSB.
  • Time Constant: ≥ 3.2 s.
  • Frequency Response: 0.01 ~ 300 Hz (-3 db).
  • Gain: 1.25, 2.5, 5, 10, 20, 10/5 mm/mV, AGC.
  • Input Impedance: ≥ 100 MΩ (10 Hz).
  • Input Circuit Current: ≤ 0.01 µA.
  • Input Voltage Range: ≤ ± 5 mVpp.
  • Calibration Voltage: 1 mV ± 2%.
  • CMRR:
    • AC On: ≥ 140 dB.
    • AC Off: ≥ 123 dB.
  • Sampling Frequency: 16000 Hz.
• Pacemaker:
  • Amplitude: ± 750 µV to ± 700 mV.
  • Width: 50 µs to 2.0 ms.
• Filter:
  • AC: 50/60 Hz.
  • DFT: 0.01 Hz / 0.05 Hz / 0.15 Hz / 0.25 Hz / 0.32 Hz / 0.5 Hz / 0.67 Hz.
  • EMG: Off / 25 Hz / 35 Hz / 45 Hz.
  • LOWPASS: 300 Hz / 270 Hz / 150 Hz / 100 Hz / 75 Hz.
• Data Transmission:
  • Report Format: PDF, XML, DICOM, FDA-SCP.
  • Data Transmission: Wi-Fi, Ethernet, RS232.
  • SE-1515 Data Management System, bi-directional communication.
  • HIS Connection: DICOM Worklist / DICOM Storage / HL7 / GDT.
• Wi-Fi:
  • Transmitting Frequency / Frequency Band: 2400 to 2497 MHz.
  • Modulation Type: DSSS, CCK, OFDM.
  • Transmitting Power / Effective Radiated Power: 6 to 17 dBm.
