Caresono PadScan HD2 Bladder Scanner

Key Features

SKU: MDP-HD2
Condition: Factory New
Country of Origin: China

Country of Origin: China
Warranty: 5 Years
Weight: 12.0 lb
Provides quick and accurate measurement for bladder volume and post-void residual (PVR) non-invasively on a wide range of patients
Helps assess urinary retention and post-operative urinary retention (POUR)
Reduces rates of catheter-associated urinary tract infections (CAUTI)
Non-invasive
Learn more:

Contact The Manufacturer

MFR: Caresono Ships from Manufacturer

Items shipped from the manufacturer

This item will be shipped directly from the manufacturer to your doorstep, ensuring that you receive the newest product available. The estimated delivery range provided is based on the manufacturer's inventory levels and is subject to change depending on the quantity ordered. We ship items as soon as they become available, so if you order multiple quantities, you may receive them in separate shipments.

Special order item

A special order item will need to ship to our warehouse from the manufacturer before then shipping to you. The estimated delivery range that you see is based on the information that we receive from the manufacturer, which is also contingent upon your ordered quantity and the current inventory levels of the manufacturer. We will ship the items to you as soon as they become available, which may result in multiple shipments if you order more than one quantity.
MPN: HD2_ext5year
Phone: (888) 850-4597

$7,194.00 $5,994.00

Select a Configuration

Variant

Est. Delivery:

Quantity

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Description

The Caresono PadScan HD2 Bladder Scanner provides quick and accurate measurement for bladder volume and post-void residual (PVR) non-invasively on a wide range of patients.

The hand held HD2 "pistol" style scanner helps assess urinary retention and post-operative urinary retention (POUR), prevents unnecessary catheterization, reduces rates of catheter-associated urinary tract infections (CAUTI), helps evaluate the need to catheterize during intermittent catheterization, and improves the efficiency of health care professionals by reducing costs and saving staff time. All of this helps to improve the welfare and satisfaction of the patients and aged-care customers.

A bladder scanner is a non-invasive, portable ultrasound device that provides a virtual 3D image of the bladder and the volume of urine retained within the bladder. Retained urine is a reservoir for bacteria and pathogens, which can cause urinary tract infections, leading to damage of the renal structures, pain, and sepsis.

Bladder scans are commonly utilized in acute care, long-term care, and rehabilitation environments, as well as in physicians' offices. Without the use of a bladder scanner, urinary retention is assessed by performing an invasive "in and out" urinary catheterization, which can be uncomfortable and pose a direct risk of introducing more pathogens into the bladder, increasing a patient's risk of infection.

Features

Caresono PadScan HD2 Bladder Scanner Features

Handheld all in one design.
Small, compact design with easy operation and accuracy.
LCD touchscreen.
Scanning Mode: Mechanical sector-shaped scanning.
High Accuracy: 8 to 10% deviation - patented Calculus methodology and 3D scanning with 12 image sections.
Automatic volume calculation.
No need for calibration due to the patented core technology.
Two scan operation modes (easy / expert).
Voice recording.
Alarm function.
Distinct patient styles provided for men, women, and children.
Storage: TF Card information storage.
Multi-language.

Specifications

Caresono PadScan HD2 Bladder Scanner Specifications

Frequency of Probe: 3.5 MHz.
Volume Measurement Range: 0 to 999 ml.
Monitor Size: 2.5" TFT LCD.
Battery Capacity: 2600 mAh.
Dimensions: 8.4" x 8" x 2.2" (213 mm x 203 mm x 55 mm).
Weight: 1.1 lb (500 g).
Battery Continuous Scanning Time: 3.5 hours.
Battery Stand By Time: 8 hours.

Configurations

Caresono PadScan HD2 Bladder Scanner Configurations

#HD2: With Standard 2 Year Warranty.
#HD2_ext5year: With Extended Warranty (5 Total Years of Coverage).

Literature

Caresono PadScan HD2 Bladder Scanner Literature

Caresono Bladder Scanner HD2 Brochure

Caresono PadScan HD2 User's Manual

Frequently asked questions

Does the PadScan HD2 provide non-invasive assessment?

Yes, the Caresono PadScan HD2 is an advanced non-invasive ultrasound bladder scanner. It uses mechanical sector-shaped scanning and patented 3D technology to accurately measure bladder volume and Post-Void Residual (PVR).

This non-invasive method is a key advantage because it:

Eliminates patient discomfort associated with invasive procedures.
Significantly reduces the risk of Catheter-Associated Urinary Tract Infections (CAUTI).
Allows for rapid assessment in various clinical settings.

Does the scanner offer high accuracy?

The PadScan HD2 Bladder Scanner is designed for high accuracy, achieving a typical deviation of 8% to 10%.

This precision is based on advanced, proprietary technology:

Patented Calculus methodology for volume calculation.
3D scanning across 12 distinct image sections.

The device is capable of measuring volumes across a wide range, from 0 to 999 ml.

Does it require frequent calibration?

No, the Caresono PadScan HD2 does not require routine calibration due to its patented core technology, ensuring consistent high precision.

Does the scanner feature multiple operational modes?

Yes, the PadScan HD2 is equipped with two distinct operational modes (often referred to as scan modes) to enhance flexibility and efficiency for users of varying skill levels:

Easy Mode: Optimized for quick, straightforward measurements and ease of use.
Expert Mode: Provides access to more detailed analysis, advanced functionality, and controls for experienced clinical staff.

This system ensures that the device can be used effectively in diverse clinical settings.

Does the scanner support distinct patient profiles?

Yes, the PadScan HD2 is engineered to support diverse patient populations by utilizing distinct patient profiles specifically tailored for measurement accuracy across demographics.

This system includes specialized settings for:

Men
Women
Children (pediatric patients)

These tailored profiles help ensure reliable and accurate volume calculations regardless of the patient’s age or sex.

What is the battery capacity and runtime?

The PadScan HD2 is equipped with a powerful 2600 mAh battery, ensuring reliable performance for portable, handheld use.

The key battery runtimes are:

Continuous Scanning Time: Up to 3.5 hours
Standby Time: Up to 8 hours

This provides necessary operational flexibility for use across various clinical environments without frequent recharging.

Does the PadScan HD2 store data?

Yes, the PadScan HD2 is equipped for efficient data management, helping to streamline documentation and workflow in clinical settings.

Key features for data handling include:

Storage Medium: The device uses a TF Card to securely store scan results and patient information.
Documentation: It also features an integrated voice recording function, allowing clinicians to capture supplementary audio notes alongside the stored data.

What is the volume measurement range?

The Caresono PadScan HD2 Bladder Scanner is designed to accurately measure bladder volumes within a range of 0 to 999 ml.

What is included with the scanner?

The Caresono PadScan HD2 comes as a complete, factory-new system designed for immediate professional use. The package includes the following items:

Caresono PadScan HD2 Handheld Bladder Scanner: An ergonomic, all-in-one device equipped with an intuitive touchscreen interface for rapid assessments.

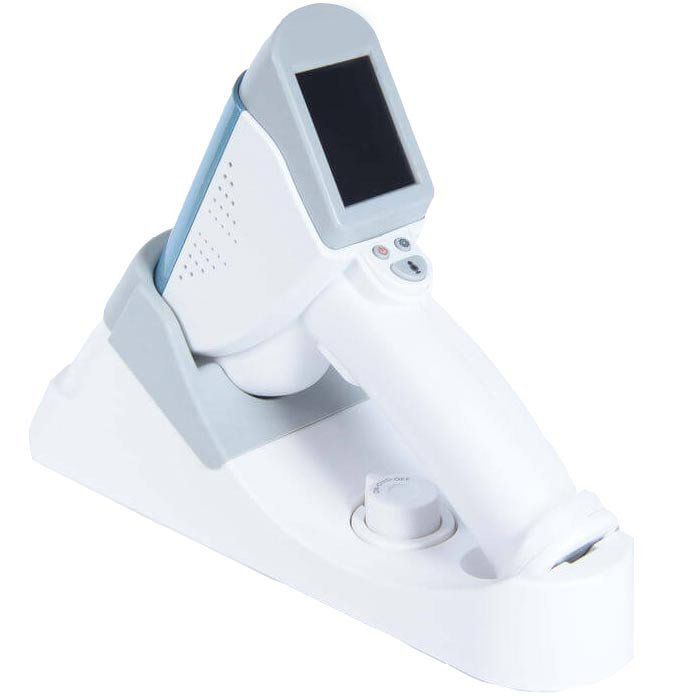

Charging/Docking Station: A custom-fitted base that keeps the device secure and charged between uses.

Is the Caresono PadScan HD2 designed for easy portability?

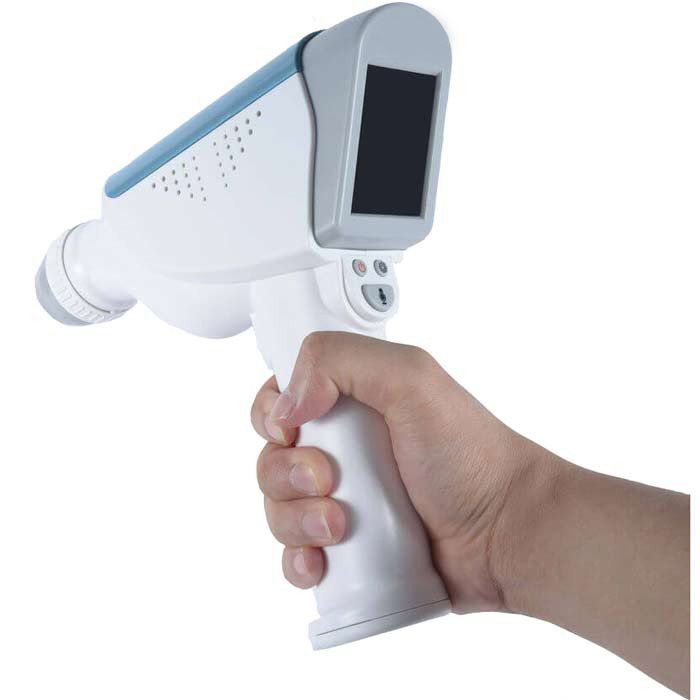

Yes, the Caresono PadScan HD2 is highly portable, featuring a compact, ergonomic, and all-in-one pistol-style design. Its handheld form factor allows healthcare professionals to easily transport the device between rooms and clinical settings, making it an efficient tool for quick, on-the-spot bladder assessments.
